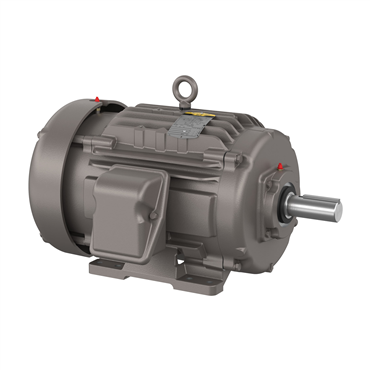

- TEFC Enclosure
- 10 hp
- 60 Hz Frequency
- 256T Frame
description
Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.
features
- Heavy duty cast iron construction
- Premium efficient electrical designs
- Enhanced ingress protection
- Corrosion resistant epoxy finish
| Enclosure Designation | TEFC - Totally Enclosed Fan Cooled |
| End Plate | Standard |
| Shaft Diameter | 1.63 in |
| Voltage Rating | 230/460 |
| Shaft Dia. | 1.625 in |
| Insulation Class | F |
| Full Load Amps | 14 |
| Torque Rating | 45 ft lb |
| HP [Min] | 10 |
| Power Factor | 74 |
| Speed [Max] | 1800 |
| Shaft Rotation | Reversible |
| Epact Nominal Full Load Efficiency | 91 % |
| Poles | 6 |
| Ambient Temperature | 104 °F |
| Model | Crusher Duty |
| Motor Application | Severe Duty |
| Type | AC Motor |
| Frame Size | 256T |
| BALD Family Names | Severe Duty |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Shaft Grounding | No |
| Useable at 208V | No |
| Full Load Current | 28/14 |
| Multispeed | Single Speed |
| Standard | CCSA US, CSA EEV, NEMA_PREMIUM, UR, NEMA |
| Hz | 60 Hz |
| RPM | 1200 rpm |
| Mounting | Foot Mounted |
| Speed | 1175 rpm |
| Bearing Type | Oversized Ball Bearing |
| Conduit Box Material | Cast Iron |
| Frame | 256T |
| Duty Cycle | Continuous |
| Voltage | 230 V, 460 V |
| NEMA Design | A |
| Overall Length | 24.77 in |
| Inverter Duty | Inverter Duty |
| Brake Feature | No |
| Synchronous | 1200 rpm |
| Mount Type | F1 |
| HP | 10 |
| Efficiency | 91% |
| Frame Material | Iron |
| Rated Efficiency | 91 % |
| Base | Rigid |
| Efficiency Group | Standard Efficient |
| Design | C |
| Service Factor | 1.25 |
| Enclosure | TEFC |
| Weight | 355.0 LB |
| EAN or UPC | 781568794364 |
