UCLE153

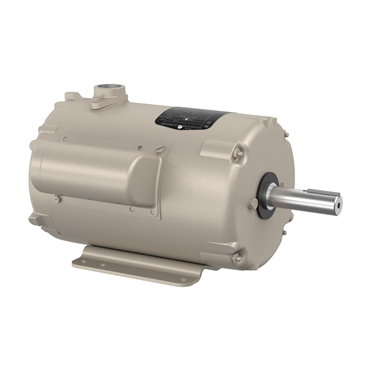

1.5 - 3 hp 143TZ Frame Single Phase AC Motor

Item #101002282

Auto Replenish

each One-time purchase

Product Details

Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments

Specifications

HP	1.5 - 3
Efficiency	78%
End Plate	Standard
Full Load Amps	12.5
Mult. Sym.	L1
Conduit Box Material	Steel
Frame Material	Steel
Service Factor	1.15
Synchronous	3600 rpm
Ambient Temperature	104 °F
Mounting	Rigid Base
Drive End Bearing	6206
Rotation	R
Full Load Pf	95
VoltCode	D1
NEMA Design	L
Frame	145TZ
RPM	3600 rpm
Duty Cycle	Continuous
Voltage	230 V
Washdown Duty	No
Full Load Efficiency	85.5 %
Hz	60 Hz
Base	Rigid
C Dimension	14 1/4 in
Enclosure Designation	TEAO - Totally Enclosed Air Over
Full Load Current	12.5
Mount Type	F1
Design	L
Voltage Rating	230
Motor Application	Farm Duty
Power Factor	95
Product Line	RG
Phase	Single Phase
Shaft Rotation	Reversible
Frame Size	143TZ
Type	3532LC
Shaft Dia.	0.875 in
Standard	CSA, UR, NEMA
Insulation Class	F
Rated Efficiency	78 %
Full Load rpm	3450 rpm
Open End Bearing	6203
Efficiency Group	Standard Efficient
BALD Family Names	Premium Efficient, Farm Duty Motor, Single Phase Motor
Speed	3450 rpm
Enclosure	TEAO
Motor Shaft Length	2 1/4 in
Useable at 208V	Yes
Poles	2
Brake Feature	No
Frequency	60 Hz
Multispeed	Single Speed
Motor Shaft Size	7/8 in
Overall Length	14.25 in
Mounting Style	F-1
Shaft Diameter	0.88 in
Shaft Grounding	No
RefPicture	UCL
Weight	52.0 LB
EAN or UPC	781568221969
