1 hp 56C Frame Three Phase AC Motor

VEM3546

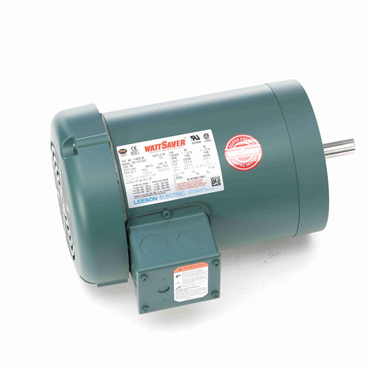

1 hp 56C Frame Three Phase AC Motor
Item #101000557
  • TEFC Enclosure
  • 1 hp
  • 60 Hz Frequency
  • 56C Frame
1 hp 56C Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • NEMA PremiumNEMA Premium
  • TEFC Enclosure
  • 1 hp
  • 60 Hz Frequency
  • 56C Frame

applications

  • General-purpose applications
  • Pumps
  • Compressors
  • Fans
  • Conveyors
  • Machine tools
  • Blowers
  • Speed reducers

features

  • Locked DE bearing to allow mounting in any configuration
  • Copper windings
  • Low noise vibration dampening base
  • Robust heavy gage steel design

caution

  • Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
  • Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
  • Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
Full Load Pf 78
Frame 56C
Rated Efficiency 85.5 %
Type 3524M
Frame Material Steel
VoltCode E
Frequency 60 Hz
Mounting Style F-1
Full Load Current 3.2/1.6
Shaft Grounding No
Drive End Bearing 6205
Shaft Dia. 0.625 in
Shaft Diameter 0.63 in
Inverter Duty Inverter Duty
Design B
Full Load Amps 1.4
Hz 60 Hz
HP 1
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
Conduit Box Material Steel
Mult. Sym. K
Mounting C-Face - Less Base
NEMA Design B
RefPicture VEM
Phase Three Phase
Insulation Class F
Open End Bearing 6203
Overall Length 12.23 in
Mount Type F1
Shaft Rotation Reversible
Service Factor 1.15
Washdown Duty No
Efficiency Group Premium Efficient
Efficiency 85.5%
Rotation R
Voltage Rating 230/460
Motor Application General Purpose
Enclosure TEFC
Synchronous 1800 rpm
Full Load Efficiency 86.5 %
Duty Cycle Continuous
Useable at 208V Yes
Standard CSA EEV, NEMA_PREMIUM, UR, NEMA
HP [Min] 1
Ambient Temperature 104 °F
Frame Size 56C
Poles 4
End Plate C-Face
Power Factor 69
Multispeed Single Speed
Brake Feature No
Base No Mounting
Full Load rpm 1750 rpm
RPM 1800
Product Line N
Speed 1770 rpm
Voltage 230 V, 400 V
Weight 36.0 LB
EAN or UPC 781568308608
NSN Number 6105-01-126-4937
