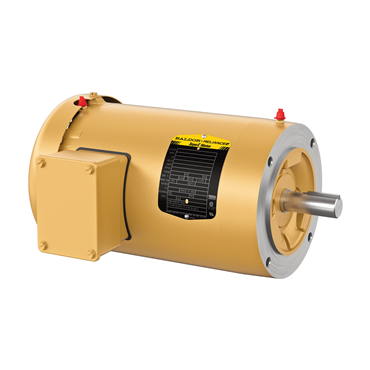

2 hp 145TC Frame Three Phase AC Motor

VEM3558T

2 hp 145TC Frame Three Phase AC Motor
Item #101002358
  • TEFC Enclosure
  • 2 hp
  • 60 Hz Frequency
  • 145TC Frame
2 hp 145TC Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • NEMA PremiumNEMA Premium
  • TEFC Enclosure
  • 2 hp
  • 60 Hz Frequency
  • 145TC Frame

applications

  • General-purpose applications
  • Pumps
  • Compressors
  • Fans
  • Conveyors
  • Machine tools
  • Blowers
  • Speed reducers

features

  • Locked DE bearing to allow mounting in any configuration
  • Copper windings
  • Low noise vibration dampening base
  • Robust heavy gage steel design
Poles 4
HP 2
Insulation Class F
Type AC Motor
Frame 145T
Standard CSA EEV, NEMA_PREMIUM, UR, NEMA
HP [Min] 2
Base No Mounting
Frame Material Steel
Duty Cycle Continuous
Shaft Rotation Reversible
Ambient Temperature 104 °F
End Plate C-Face
Efficiency Group Premium Efficient
Mounting C-Face - Less Base
Efficiency 86.5%
Multispeed Single Speed
Speed 1760 rpm
Phase Three Phase
Full Load Current 5.6/2.8
Power Factor 77
RPM 1800
Motor Application General Purpose
Hz 60 Hz
Voltage Rating 230/460
Rated Efficiency 86.5 %
Shaft Diameter 0.88 in
Conduit Box Material Steel
Frame Size 145TC
Frequency 60 Hz
Inverter Duty Inverter Ready
Synchronous 1800 rpm
Service Factor 1.15
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
NEMA Design B
Mount Type F1
Enclosure TEFC
Shaft Grounding No
Voltage 575 V
Shaft Dia. 0.875 in
Overall Length 13.29 in
Weight 47.0 LB
EAN or UPC 781568414149
