VL3506

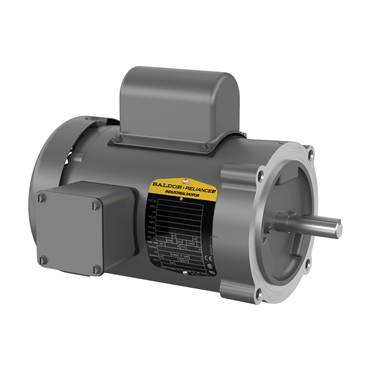

3/4 hp 56C Frame Single Phase AC Motor

Item #101000600

Auto Replenish

each One-time purchase

Alternate Products

Weg Electric Corp. .7536ES1B56CFL-S

General Purpose Motors - TEFC

Item #112705744

each

Compare

Product Details

Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments

Specifications

Frame Size	56C
Product Line	N
Design	N
Efficiency	66%
Efficiency Group	Standard Efficient
Motor Shaft Size	5/8 in
Frame	56C
Hz	60 Hz
Standard	CSA, UR, NEMA
Duty Cycle	Continuous
Mounting Style	F-1
Frequency	60 Hz
Rotation	R
NEMA Design	N
BALD Family Names	C-Face, Single Phase Motor
RPM	3600 rpm
Full Load Pf	74
Open End Bearing	6203
Motor Application	General Purpose
Service Factor	1.25
Full Load Amps	4.8
Ambient Temperature	104 °F
Shaft Grounding	No
Enclosure	TEFC
Mount Type	F-1
Washdown Duty	No
VoltCode	B1
Brake Feature	No
Drive End Bearing	6203
Overall Length	11.97 in
Substitute Motor	CL3506
End Plate	C-Face
Base	No Mounting
Voltage	115 V, 230 V
Mounting	C-Face - Less Base
Frame Material	Steel
Full Load rpm	3450 rpm
Voltage Rating	230, 115
C Dimension	12 in
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Full Load Current	9.6 A/4.8 A
Shaft Rotation	Reversible
Insulation Class	B
Type	3424L
Phase	Single Phase
Mult. Sym.	K
Full Load Efficiency	66 %
RefPicture	VL3514T
Poles	2
Synchronous	3600 rpm
Useable at 208V	Yes
Motor Shaft Length	1 7/8 in
Shaft Dia.	0.625 in
Power Factor	74
HP	3/4
Speed	3450 rpm
Weight	29.0 LB
EAN or UPC	781568109052
NSN Number	6105-01-443-4575
