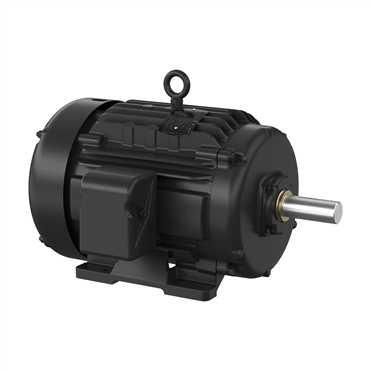

- TEFC Enclosure
- 10 hp
- 60 Hz Frequency
- 256T Frame
description
Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.
features
- Heavy duty cast iron construction
- Premium efficient electrical designs
- Enhanced ingress protection
- Corrosion resistant epoxy finish
| Conduit Box Material | Cast Iron |
| Base | Rigid |
| Frequency | 60 Hz |
| Enclosure | TEFC |
| Model | XT |
| HP | 10 |
| Shaft Rotation | Reversible |
| Efficiency | 91% |
| Motor Application | Severe Duty |
| Overall Length | 23.36 in |
| Speed | 1180 rpm |
| NEMA Design | B |
| Duty Cycle | Continuous |
| Mounting | Foot Mounted |
| Poles | 6 |
| Shaft Dia. | 1.625 in |
| Insulation Class | F |
| End Plate | Standard |
| Phase | Three Phase |
| Mount Type | F-1 |
| Ambient Temperature | 104 °F |
| Shaft Grounding | No |
| Voltage Rating | 230/460 |
| Service Factor | 1.15 |
| HP [Min] | 10 |
| Standard | CCSA US, CSA EEV, NEMA_PREMIUM, UR, NEMA |
| Full Load Current | 28.2 A/14.1 A |
| Frame | 256T |
| RPM | 1200 rpm |
| Frame Size | 256T |
| Synchronous | 1200 rpm |
| Power Factor | 72 |
| Frame Material | Iron |
| Voltage | 575 V |
| Inverter Duty | Inverter Duty |
| Weight | 323.0 LB |
| EAN or UPC | 781568966532 |
