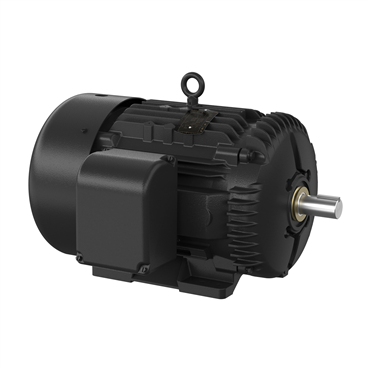

- TEFC Enclosure
- 30 hp
- 60 Hz Frequency
- 286TS Frame
description
Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.
features
- Heavy duty cast iron construction
- Premium efficient electrical designs
- Enhanced ingress protection
- Corrosion resistant epoxy finish
| Efficiency | 91.7% |
| HP [Min] | 30 |
| Service Factor | 1.15 |
| Voltage Rating | 230/460 |
| RPM | 3600 rpm |
| Enclosure | TEFC |
| NEMA Design | A |
| Ambient Temperature | 104 °F |
| End Plate | Standard |
| Speed | 3525 rpm |
| Motor Application | Severe Duty |
| Duty Cycle | Continuous |
| Inverter Duty | Inverter Duty |
| Frame | 286TS |
| Frame Material | Iron |
| Model | XT |
| Insulation Class | F |
| Shaft Rotation | Reversible |
| HP | 30 |
| Standard | CCSA US, CSA EEV, NEMA_PREMIUM, UR, NEMA |
| Shaft Dia. | 1.625 in |
| Phase | Three Phase |
| Conduit Box Material | Cast Iron |
| Poles | 2 |
| Shaft Grounding | No |
| Mount Type | F-1 |
| Power Factor | 90 |
| Full Load Current | 68 A/34 A |
| Voltage | 575 V |
| Mounting | Foot Mounted |
| Base | Rigid |
| Frequency | 60 Hz |
| Overall Length | 26.39 in |
| Frame Size | 286TS |
| Synchronous | 3600 rpm |
| Weight | 410.999 LB |
| EAN or UPC | 781568967331 |
