- TEFC Enclosure
- 75 hp
- 60 Hz Frequency
- 365T Frame
description

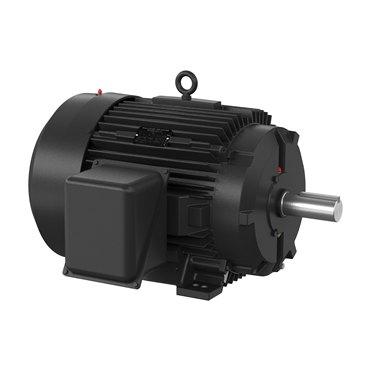

Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.
features
- Heavy duty cast iron construction
- Premium efficient electrical designs
- Enhanced ingress protection
- Corrosion resistant epoxy finish
| Shaft Dia. | 2.375 in |
| Standard | CCSAUSEEV, NEMA_PREMIUM, UR, NEMA |
| Power Factor | 86 |
| Shaft Rotation | Reversible |
| Frame Material | Iron |
| Efficiency | 95.4% |
| Service Factor | 1.15 |
| Enclosure | TEFC |
| RPM | 1800 rpm |
| Mount Type | F-1 |
| Mounting | Foot Mounted |
| Base | Rigid |
| Model | XT |
| Ambient Temperature | 104 °F |
| Inverter Duty | Inverter Ready |
| Speed [Max] | 3600 rpm |
| Insulation Class | F |
| Speed | 1800 rpm |
| HP [Min] | 75 |
| Shaft Grounding | No |
| End Plate | Standard |
| Overall Length | 33.48 in |
| Voltage | 575 V |
| Phase | Three Phase |
| Voltage Rating | 230/460 |
| Frame | 365T |
| Motor Application | Severe Duty |
| Frequency | 60 Hz |
| Poles | 4 |
| HP | 75 |
| NEMA Design | B |
| Duty Cycle | Continuous |
| Frame Size | 365T |
| Weight | 965.0 LB |
| EAN or UPC | 781568965665 |
