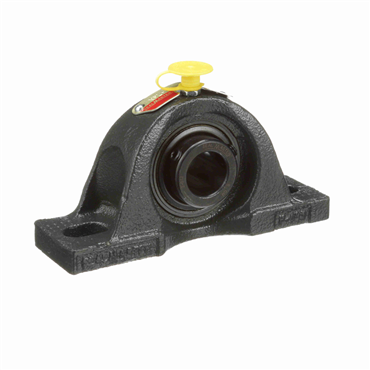

Narrow Inner Ring Cast Iron Housing Material Pillow Block

KHLP204-12

Narrow Inner Ring Cast Iron Housing Material Pillow Block
Item #101400940
  • 3/4 in Shaft Diameter
  • 1 1/4 in Center Line To Base Dimension
  • 3 1/2 in Bolt Hole Spacing Range [MIN]
Narrow Inner Ring Cast Iron Housing Material Pillow Block
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 3/4 in Shaft Diameter
  • 1 1/4 in Center Line To Base Dimension
  • 3 1/2 in Bolt Hole Spacing Range [MIN]
Bearing Type Ball Bearing
Inch/Metric Inch Bore
Housing No. LP204
Relubricatable Yes
Base Height 1/2 in
Shaft Dia. 0.75 in
Bolt Hole Spacing Range [Min] 3 1/2 in
Lubrication Fitting Tap 1/4-28 UNF
Locking Style Eccentric Collar
Mounted Unit Duty Normal-Duty
Insert Material AISI 52100 Steel
Bolt Hole Spacing Range [Max] 4 1/4 in
Series KHLP200
Duty Series Normal
Bolt Hole Length 3/4 in
Housing Material Cast Iron
Bearing Design Non-Expansion
End Type Open End
Seal Type Contact Seals
Pillow Block Type Thru-Bolt
Length Through Bore 1 7/32 in
Base Width 1 1/4 in
Bearing Insert KH204-12
Bolt Holes 2
Bolt Size 3/8 in
Locking Device Setscrew Locking Collar
Housing LP204T
Base Length 5 1/4 in
Lubrication Relubricatable
Bolt Hole Width 1/2 in
Bolt Hole Spacing 3 7/8 in
Housing Construction 1 Piece
Housing Height 2 9/16 in
Weight 1.42 LB
EAN or UPC 808250103379
