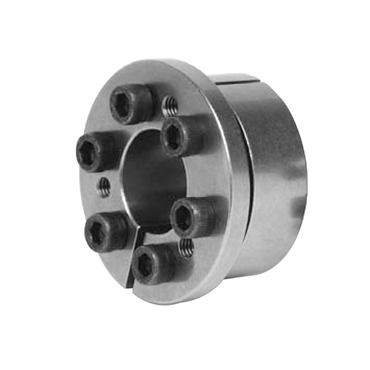

Unique, keyless frictional devices that provide an easily adjustable and releasable mechanical shrink fit. All the advantages of a shrink fit with none of the problems.
features
Offers a way to securely hold a pulley on a shaft
Guaranteed zero backlash
Will not vibrate loose
Multiple plating options and stainless steel available for corrosion resistance
For larger shaft diameters please see our complete line of Climax KLD locking assemblies
Complies with RoHS restrictions on the use of certain hazardous substances in electrical and electronic equipment
Thread Size
M10
I.D.
2 15/16 in
O.D.
4.53 in
Hub Contact Pressure
18852 psi
Transmitted Axial Force
30403 lbf
Torque
3721 ft lb
Style
Self-Centering
Screw Tightening Torque
61 lb/ft
Bolt Size
M10 x 30
Mountable Thickness
1.2 in
Shaft Contact Pressure
29056 psi
Bolt Circle Dia.
3.819 in
Type
Locking Assembly
Hub Dia.
7.08 in
Thickness
1.59 in
Inch/Metric
Inch
No. of Screws
8
Material
Steel
Locking Screws Size
M10 x 30
Series
C133
Overall Length
1.99 in
Weight
3.9 LB
EAN or UPC
44861074541
