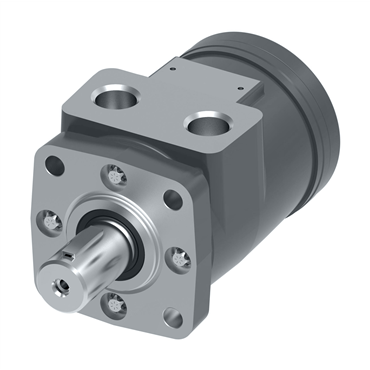

H Series Low Speed High Torque Gerotor Spool Motor

101-1001-009

H Series Low Speed High Torque Gerotor Spool Motor
Item #101765971
  • Spool Valve Motor
  • Cast Iron Material
  • 1/2-14 Prort Size
  • NPTF Port
  • 4 Bolt Mount
  • Straight Output Shaft
+ Show More + Show Less
H Series Low Speed High Torque Gerotor Spool Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Spool Valve Motor
  • Cast Iron Material
  • 1/2-14 Prort Size
  • NPTF Port
  • 4 Bolt Mount

description

  • Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.

applications

  • Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers

features

  • Compact yet powerful
  • Extended bearing life
  • Increased shaft seal

options

  • Five mounting styles
  • Low-speed spool
  • Nine shaft options
  • Speed sensors
Port Location Side Port
Intermittent Pressure [Max] 165 bar
Pressure [Max] 1800 psi
Viscosity Recommendation 455 Saybold Universal Second
Output Torque at Rated PSI (inch/pounds) 646.1 in lb
Seal Options Standard
Mounting Hole Size 3/8-16 UNC-2B
Mounting Holes 3/8-16
Displacement 46 cm3/Rev
Torque 54.02 Nm
Output Shaft Type Straight
RPM [Max] 969 rpm
Recommended System Working Temperature [Max] 180 °F
Motor Type Spool Valve
Bolt Circle Dia. 3 1/4 in
Series H Series
Duty Standard-Duty
Splines 0
Case Drain Code 0
Maximum Speed @ Continuous Flow 969 rpm @ 12 gal/min
Output Shaft Code 01
Brake Type Hydraulic
Port Type NPTF
Port Size & Location 1/2 in NPTF Side
Paint Primer Low Gloss Black
Port Size 1/2-14
Recommended System Working Temperature [Min] -30 °F
Material Cast Iron
Mount Type 4 Bolt
Special Features Assembly Code 0
Flow Rate 45.77 lpm
Corrosion Resistant No
Mounting Type Code B
Design Code 9
Front Seal Kit If Available 60540-000
Case Drain None
Port Code B
Motor Element Gerotor
Paint Code A
Seal Material Buna-N
Inlet Pressure [Max] 2500 psi
Flange Orientation Standard
Rotation Standard Rotation
Shaft Type Straight w/ Woodruff Key
Pilot Diameter 1.75 in
Flow [Max] 12 gal/min
Displacement (in³/rev) 2.8
Paint/Packaging Low Gloss Black, Individual Box
RPM [Min] 969 rpm
Special Features Hardware Code 00
Shaft Size & Type 1 in x 1/4 in Straight
Weight 11.035 LB
