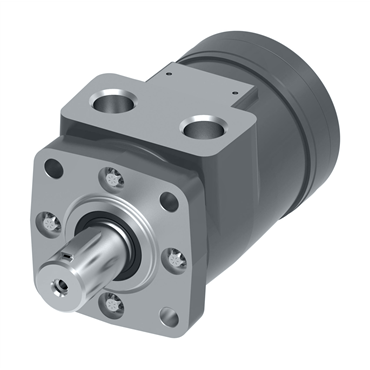

- Spool Valve Motor
- Cast Iron Material
- 1/2-14 Prort Size
- NPTF Port
- 4 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Duty | Standard-Duty |
| Seal Material | Buna-N |
| Port Location | Side Port |
| Special Features Assembly Code | 0 |
| Port Size & Location | 1/2 in NPTF Side |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Design Code | 9 |
| Front Seal Kit If Available | 60540-000 |
| Material | Cast Iron |
| Flange Orientation | Standard |
| Special Features Hardware Code | 00 |
| Flow [Max] | 15 gal/min |
| Splines | 0 |
| Displacement | 96 cm3/Rev |
| Pressure [Max] | 1800 psi |
| RPM [Min] | 585 rpm |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Mount Type | 4 Bolt |
| Port Type | NPTF |
| Corrosion Resistant | No |
| Output Shaft Code | 01 |
| Output Torque at Rated PSI (inch/pounds) | 1368 in lb |
| Bolt Circle Dia. | 3 1/4 in |
| Mounting Holes | 3/8-16 |
| Paint | Primer Low Gloss Black |
| Mounting Hole Size | 3/8-16 UNC-2B |
| Paint Code | A |
| Torque | 155 Nm |
| Series | H Series |
| Mounting Type Code | B |
| Port Code | B |
| Recommended System Working Temperature [Max] | 180 °F |
| Paint/Packaging | Low Gloss Black, Individual Box |
| Pilot Diameter | 1.75 in |
| Case Drain Code | 0 |
| RPM [Max] | 585 rpm |
| Recommended System Working Temperature [Min] | -30 °F |
| Inlet Pressure [Max] | 2500 psi |
| Flow Rate | 57 lpm |
| Rotation | Standard Rotation |
| Motor Element | Gerotor |
| Maximum Speed @ Continuous Flow | 585 rpm @ 15 gal/min |
| Port Size | 1/2-14 |
| Intermittent Pressure [Max] | 165 bar |
| Seal Options | Standard |
| Case Drain | None |
| Shaft Type | Straight w/ Woodruff Key |
| Displacement (in³/rev) | 5.9 |
| Brake Type | Hydraulic |
| Motor Type | Spool Valve |
| Output Shaft Type | Straight |
| Weight | 11.8 LB |
