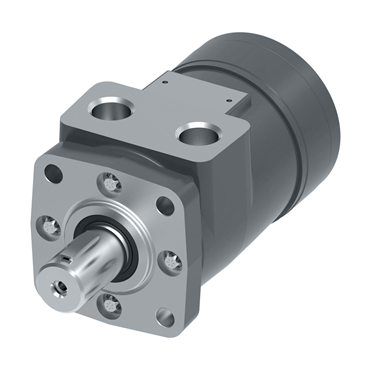

- Spool Valve Motor
- Cast Iron Material
- 1/2-14 Prort Size
- NPTF Port
- 4 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Port Size | 1/2-14 |
| Mounting Holes | 3/8-16 |
| RPM [Max] | 353 rpm |
| Motor Element | Gerotor |
| Maximum Speed @ Continuous Flow | 353 rpm @ 15 gal/min |
| Splines | 0 |
| Flow [Max] | 15 gal/min |
| Motor Type | Spool Valve |
| Mount Type | 4 Bolt |
| Inlet Pressure [Max] | 2500 psi |
| Design Code | 9 |
| Series | H Series |
| Bolt Circle Dia. | 3 1/4 in |
| Paint/Packaging | Low Gloss Black, Individual Box |
| Flow Rate | 57 lpm |
| Port Size & Location | 1/2 in NPTF Side |
| Mounting Hole Size | 3/8-16 UNC-2B |
| Displacement (in³/rev) | 9.7 |
| Output Shaft Type | Straight |
| Shaft Type | Straight w/ Woodruff Key |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Case Drain | None |
| Front Seal Kit If Available | 60540-000 |
| Duty | Standard-Duty |
| Seal Material | Buna-N |
| Special Features Assembly Code | 0 |
| Rotation | Standard Rotation |
| Output Shaft Code | 01 |
| Seal Options | Standard |
| Output Torque at Rated PSI (inch/pounds) | 2062.22 in lb |
| Pressure [Max] | 1650 psi |
| Corrosion Resistant | No |
| Paint Code | J |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Brake Type | Hydraulic |
| Intermittent Pressure [Max] | 155 bar |
| Flange Orientation | Standard |
| Pilot Diameter | 1.75 in |
| Mounting Type Code | B |
| Special Features Hardware Code | 00 |
| Torque | 233 Nm |
| RPM [Min] | 353 rpm |
| Case Drain Code | 0 |
| Port Location | Side Port |
| Displacement | 159 cm3/Rev |
| Recommended System Working Temperature [Min] | -30 °F |
| Recommended System Working Temperature [Max] | 180 °F |
| Port Type | NPTF |
| Material | Cast Iron |
| Paint | Low Gloss Black 2 Mils Min Thick |
| Port Code | B |
| Weight | 12.5 LB |
