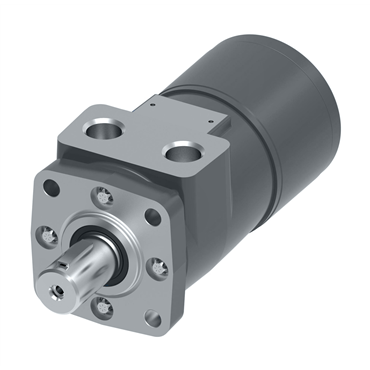

- Spool Valve Motor
- Cast Iron Material
- 1/2-14 Prort Size
- NPTF Port
- 4 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Paint/Packaging | Low Gloss Black, Individual Box |
| Pressure [Max] | 1250 psi |
| Port Size & Location | 1/2 in NPTF Side |
| Port Size | 1/2-14 |
| Design Code | 9 |
| Case Drain | None |
| Bolt Circle Dia. | 3 1/4 in |
| Corrosion Resistant | No |
| Inlet Pressure [Max] | 2500 psi |
| Recommended System Working Temperature [Max] | 180 °F |
| Pilot Diameter | 1.75 in |
| Front Seal Kit If Available | 60540-000 |
| Paint | Primer Low Gloss Black |
| Torque | 407 Nm |
| Maximum Speed @ Continuous Flow | 152 rpm @ 15 gal/min |
| Series | H Series |
| Shaft Type | Straight w/ Woodruff Key |
| Motor Type | Spool Valve |
| Seal Options | Standard |
| Special Features Hardware Code | 00 |
| Brake Type | Hydraulic |
| Port Code | B |
| Recommended System Working Temperature [Min] | -30 °F |
| Flow Rate | 57 lpm |
| Rotation | Standard Rotation |
| Port Location | Side Port |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Splines | 0 |
| Output Torque at Rated PSI (inch/pounds) | 3602.25 in lb |
| Displacement (in³/rev) | 22.6 |
| Material | Cast Iron |
| Mounting Type Code | B |
| Motor Element | Gerotor |
| Paint Code | A |
| Output Shaft Type | Straight |
| RPM [Max] | 152 rpm |
| Output Shaft Code | 01 |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Intermittent Pressure [Max] | 103 bar |
| Mounting Hole Size | 3/8-16 UNC-2B |
| Flange Orientation | Standard |
| Duty | Standard-Duty |
| Mounting Holes | 3/8-16 |
| Port Type | NPTF |
| RPM [Min] | 152 rpm |
| Mount Type | 4 Bolt |
| Displacement | 370 cm3/Rev |
| Case Drain Code | 0 |
| Flow [Max] | 15 gal/min |
| Seal Material | Buna-N |
| Special Features Assembly Code | 0 |
| Weight | 14.55 LB |
