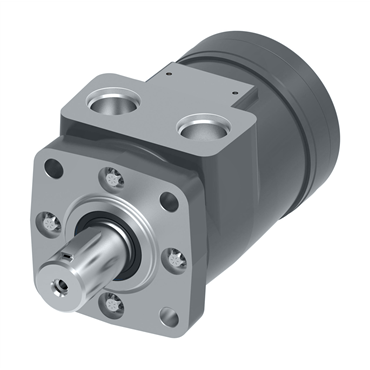

- Spool Valve Motor
- Cast Iron Material
- 7/8-14 Prort Size
- SAE O-Ring Port
- 4 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Port Size | 7/8-14 |
| Port Size & Location | SAE-10 Side |
| Displacement (in³/rev) | 5.9 |
| Intermittent Pressure [Max] | 165 bar |
| Motor Type | Spool Valve |
| Port Location | Side Port |
| Duty | Standard-Duty |
| Port Type | SAE O-Ring |
| Seal Options | Standard |
| Mounting Type Code | B |
| Bolt Circle Dia. | 3 1/4 in |
| Mount Type | 4 Bolt |
| Pilot Diameter | 1.75 in |
| Recommended System Working Temperature [Max] | 180 °F |
| Seal Material | Buna-N |
| Pressure [Max] | 1800 psi |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Paint | Low Gloss Black 2 Mils Min Thick |
| Design Code | 9 |
| Splines | 0 |
| Flow [Max] | 15 gal/min |
| Port Code | A |
| Motor Element | Gerotor |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Case Drain | None |
| RPM [Max] | 585 rpm |
| Special Features Assembly Code | 0 |
| Output Shaft Code | 01 |
| Inlet Pressure [Max] | 2500 psi |
| Paint Code | J |
| Shaft Type | Straight w/ Woodruff Key |
| Corrosion Resistant | No |
| Torque | 155 Nm |
| Mounting Holes | 3/8-16 |
| Flow Rate | 57 lpm |
| Mounting Hole Size | 3/8-16 UNC-2B |
| Paint/Packaging | Low Gloss Black, Individual Box |
| Maximum Speed @ Continuous Flow | 585 rpm @ 15 gal/min |
| Front Seal Kit If Available | 60540-000 |
| Flange Orientation | Standard |
| Series | H Series |
| Brake Type | Hydraulic |
| Displacement | 96 cm3/Rev |
| Output Torque at Rated PSI (inch/pounds) | 1368 in lb |
| Output Shaft Type | Straight |
| Case Drain Code | 0 |
| Recommended System Working Temperature [Min] | -30 °F |
| Material | Cast Iron |
| Special Features Hardware Code | 00 |
| Rotation | Standard Rotation |
| RPM [Min] | 585 rpm |
| Weight | 11.5 LB |
