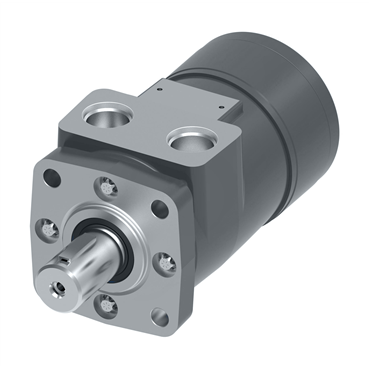

- Spool Valve Motor
- Cast Iron Material
- 7/8-14 Prort Size
- SAE O-Ring Port
- 4 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Port Location | Side Port |
| Paint Code | A |
| Mounting Holes | 3/8-16 |
| Intermittent Pressure [Max] | 138 bar |
| Output Shaft Code | 01 |
| Material | Cast Iron |
| Corrosion Resistant | No |
| Pilot Diameter | 1.75 in |
| Recommended System Working Temperature [Max] | 180 °F |
| Flange Orientation | Standard |
| Mounting Type Code | B |
| Output Shaft Type | Straight |
| Special Features Hardware Code | 00 |
| Mounting Hole Size | 3/8-16 UNC-2B |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Motor Element | Gerotor |
| Shaft Type | Straight w/ Woodruff Key |
| Mount Type | 4 Bolt |
| Design Code | 9 |
| Port Type | SAE O-Ring |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Displacement | 231 cm3/Rev |
| Recommended System Working Temperature [Min] | -30 °F |
| Displacement (in³/rev) | 14.1 |
| Flow [Max] | 15 gal/min |
| Port Size & Location | SAE-10 Side |
| Brake Type | Hydraulic |
| Case Drain Code | 0 |
| Case Drain | None |
| Front Seal Kit If Available | 60540-000 |
| Inlet Pressure [Max] | 2500 psi |
| Port Code | A |
| Flow Rate | 57 lpm |
| Paint/Packaging | Primer Low Gloss Black, Individual Box |
| Pressure [Max] | 1450 psi |
| Series | H Series |
| RPM [Min] | 243 rpm |
| Splines | 0 |
| Maximum Speed @ Continuous Flow | 243 rpm @ 15 gal/min |
| Port Size | 7/8-14 |
| Motor Type | Spool Valve |
| Rotation | Standard Rotation |
| Bolt Circle Dia. | 3 1/4 in |
| Torque | 302 Nm |
| Special Features Assembly Code | 0 |
| Output Torque at Rated PSI (inch/pounds) | 2673 in lb |
| Paint | Primer Low Gloss Black |
| Seal Material | Buna-N |
| RPM [Max] | 243 rpm |
| Seal Options | Standard |
| Duty | Standard-Duty |
| Weight | 13.0 LB |
