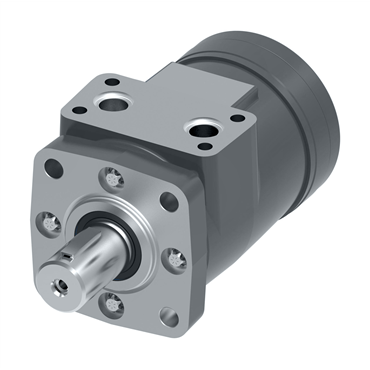

- Spool Valve Motor
- Cast Iron Material
- Manifold, O-Ring Port
- 4 Bolt Mount
- Straight Output Shaft
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Flow Rate | 57 lpm |
| Mount Type | 4 Bolt |
| Case Drain Code | 0 |
| Pilot Diameter | 1.75 in |
| Intermittent Pressure [Max] | 165 bar |
| Mounting Hole Size | 3/8-16 UNC-2B |
| Brake Type | Hydraulic |
| Recommended System Working Temperature [Max] | 180 °F |
| Paint Code | A |
| Output Torque at Rated PSI (inch/pounds) | 1368 in lb |
| Paint | Primer Low Gloss Black |
| Seal Options | Standard |
| Splines | 0 |
| Inlet Pressure [Max] | 2500 psi |
| Special Features Hardware Code | 00 |
| Recommended System Working Temperature [Min] | -30 °F |
| Mounting Type Code | B |
| Mounting Holes | 3/8-16 |
| Duty | Standard-Duty |
| Output Shaft Type | Straight |
| Displacement (in³/rev) | 5.9 |
| RPM [Max] | 585 rpm |
| Motor Element | Gerotor |
| Special Features Assembly Code | 0 |
| Output Shaft Code | 01 |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Bolt Circle Dia. | 3 1/4 in |
| Torque | 155 Nm |
| Paint/Packaging | Low Gloss Black, Individual Box |
| Series | H Series |
| Port Type | Manifold, O-Ring |
| Material | Cast Iron |
| Seal Material | Buna-N |
| Flange Orientation | Standard |
| Case Drain | None |
| Port Code | C |
| Motor Type | Spool Valve |
| Flow [Max] | 15 gal/min |
| Maximum Speed @ Continuous Flow | 585 rpm @ 15 gal/min |
| RPM [Min] | 585 rpm |
| Design Code | 9 |
| Shaft Type | Straight w/ Woodruff Key |
| Front Seal Kit If Available | 60540-000 |
| Port Size & Location | Manifold, 5/16-18 Side |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Displacement | 96 cm3/Rev |
| Port Location | Side Port |
| Rotation | Standard Rotation |
| Pressure [Max] | 1800 psi |
| Port Size | Manifold, 5/16-18 UNC Threads, 5/16-18 UNC |
| Corrosion Resistant | No |
| Weight | 11.7 LB |
