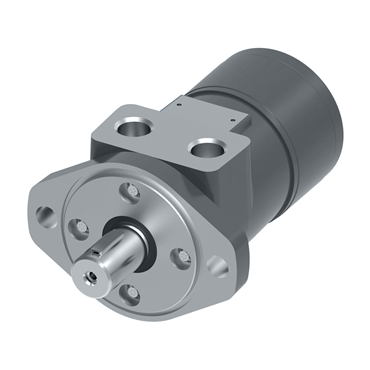

- Spool Valve Motor
- Cast Iron Material
- 1/2-14 Prort Size
- NPTF Port
- 2 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Series | H Series |
| Mounting Type Code | A |
| Special Features Assembly Code | 0 |
| Mount Type | 2 Bolt |
| Rotation | Standard Rotation |
| Corrosion Resistant | No |
| Recommended System Working Temperature [Max] | 180 °F |
| Case Drain Code | 0 |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Case Drain | None |
| Motor Type | Spool Valve |
| Paint | Primer Low Gloss Black |
| Pilot Diameter | 3.25 in |
| RPM [Min] | 192 rpm |
| Port Size & Location | 1/2 in NPTF Side |
| Displacement (in³/rev) | 17.9 |
| Design Code | 9 |
| Mounting Holes | 0.535 in |
| Port Size | 1/2-14 |
| RPM [Max] | 192 rpm |
| Maximum Speed @ Continuous Flow | 192 rpm @ 15 gal/min |
| Shaft Type | Straight w/ Woodruff Key |
| Output Shaft Code | 01 |
| Port Location | Side Port |
| Bolt Circle Dia. | 4.19 in |
| Intermittent Pressure [Max] | 124 bar |
| Torque | 351 Nm |
| Seal Material | Buna-N |
| Mounting Hole Size | 0.54 in |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Flange Orientation | Standard |
| Motor Element | Gerotor |
| Inlet Pressure [Max] | 2500 psi |
| Output Torque at Rated PSI (inch/pounds) | 3106.61 in lb |
| Flow Rate | 57 lpm |
| Displacement | 294 cm3/Rev |
| Paint/Packaging | Low Gloss Black, Individual Box |
| Flow [Max] | 15 gal/min |
| Output Shaft Type | Straight |
| Front Seal Kit If Available | 60540-000 |
| Recommended System Working Temperature [Min] | -30 °F |
| Splines | 0 |
| Brake Type | Hydraulic |
| Material | Cast Iron |
| Paint Code | A |
| Port Code | B |
| Duty | Standard-Duty |
| Special Features Hardware Code | 00 |
| Pressure [Max] | 1350 psi |
| Port Type | NPTF |
| Seal Options | Standard |
| Weight | 14.4 LB |
