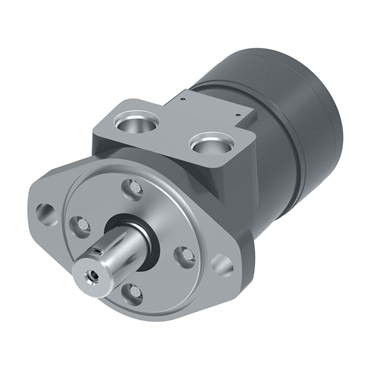

- Spool Valve Motor
- Cast Iron Material
- 7/8-14 Prort Size
- SAE O-Ring Port
- 2 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Design Code | 9 |
| Mount Type | 2 Bolt |
| Duty | Standard-Duty |
| Front Seal Kit If Available | 60540-000 |
| Flange Orientation | Standard |
| Output Shaft Type | Straight |
| Seal Material | Buna-N |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Case Drain | None |
| Recommended System Working Temperature [Min] | -30 °F |
| Intermittent Pressure [Max] | 138 bar |
| Port Location | Side Port |
| Displacement (in³/rev) | 14.1 |
| Brake Type | Hydraulic |
| Material | Cast Iron |
| Special Features Hardware Code | 00 |
| Output Shaft Code | 01 |
| Bolt Circle Dia. | 4.19 in |
| Splines | 0 |
| Port Type | SAE O-Ring |
| Pilot Diameter | 3.25 in |
| RPM [Min] | 243 rpm |
| Case Drain Code | 0 |
| Output Torque at Rated PSI (inch/pounds) | 2672.92 in lb |
| Mounting Type Code | A |
| Motor Type | Spool Valve |
| Mounting Hole Size | 0.54 in |
| Special Features Assembly Code | 0 |
| Corrosion Resistant | No |
| Inlet Pressure [Max] | 2500 psi |
| Flow Rate | 57 lpm |
| Paint | Primer Low Gloss Black |
| Seal Options | Standard |
| Paint Code | A |
| RPM [Max] | 243 rpm |
| Recommended System Working Temperature [Max] | 180 °F |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Port Code | A |
| Shaft Type | Straight w/ Woodruff Key |
| Maximum Speed @ Continuous Flow | 243 rpm @ 15 gal/min |
| Series | H Series |
| Torque | 302 Nm |
| Port Size | 7/8-14 |
| Mounting Holes | 0.535 in |
| Motor Element | Gerotor |
| Paint/Packaging | Low Gloss Black, Individual Box |
| Pressure [Max] | 1450 psi |
| Port Size & Location | SAE-10 Side |
| Flow [Max] | 15 gal/min |
| Displacement | 231 cm3/Rev |
| Rotation | Standard Rotation |
| Weight | 13.3 LB |
