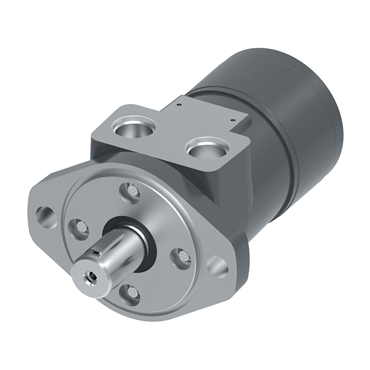

- Spool Valve Motor
- Cast Iron Material
- 7/8-14 Prort Size
- SAE O-Ring Port
- 2 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Recommended System Working Temperature [Max] | 180 °F |
| Mount Type | 2 Bolt |
| Output Shaft Code | 01 |
| Inlet Pressure [Max] | 2500 psi |
| Series | H Series |
| Paint | Primer Low Gloss Black |
| Port Code | A |
| Torque | 351 Nm |
| Corrosion Resistant | No |
| Design Code | 9 |
| Intermittent Pressure [Max] | 124 bar |
| Port Location | Side Port |
| Port Size | 7/8-14 |
| Bolt Circle Dia. | 4.19 in |
| Flow Rate | 57 lpm |
| Paint Code | A |
| Output Shaft Type | Straight |
| Recommended System Working Temperature [Min] | -30 °F |
| Motor Element | Gerotor |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Material | Cast Iron |
| Seal Material | Buna-N |
| Mounting Holes | 0.535 in |
| Maximum Speed @ Continuous Flow | 192 rpm @ 15 gal/min |
| Seal Options | Standard |
| Displacement (in³/rev) | 17.9 |
| Shaft Type | Straight w/ Woodruff Key |
| Paint/Packaging | Low Gloss Black, Individual Box |
| Rotation | Standard Rotation |
| Mounting Type Code | A |
| Port Size & Location | SAE-10 Side |
| Pilot Diameter | 3.25 in |
| Pressure [Max] | 1350 psi |
| Front Seal Kit If Available | 60540-000 |
| Flange Orientation | Standard |
| Flow [Max] | 15 gal/min |
| Special Features Hardware Code | 00 |
| Port Type | SAE O-Ring |
| RPM [Min] | 192 rpm |
| Special Features Assembly Code | 0 |
| Splines | 0 |
| Mounting Hole Size | 0.54 in |
| Case Drain | None |
| Displacement | 294 cm3/Rev |
| Duty | Standard-Duty |
| Case Drain Code | 0 |
| Motor Type | Spool Valve |
| RPM [Max] | 192 rpm |
| Output Torque at Rated PSI (inch/pounds) | 150.46 in lb |
| Brake Type | Hydraulic |
| Weight | 14.0 LB |
