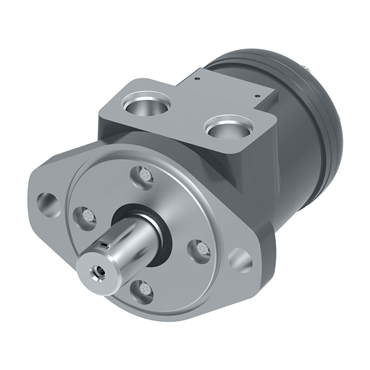

- Spool Valve Motor
- Cast Iron Material
- 7/8-14 Prort Size
- SAE O-Ring Port
- 2 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Shaft Type | Straight w/ Woodruff Key |
| Recommended System Working Temperature [Max] | 180 °F |
| Mounting Hole Size | 0.54 in |
| Output Torque at Rated PSI (inch/pounds) | 646.1 in lb |
| Mounting Type Code | A |
| Port Location | Side Port |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Paint | Primer Low Gloss Black |
| Output Shaft Type | Straight |
| Port Code | A |
| RPM [Max] | 969 rpm |
| Case Drain Code | 1 |
| Paint Code | A |
| Flange Orientation | Standard |
| Maximum Speed @ Continuous Flow | 969 rpm @ 12 gal/min |
| Special Features Assembly Code | 0 |
| Pressure [Max] | 1800 psi |
| Seal Material | Buna-N |
| Displacement (in³/rev) | 2.8 |
| Flow [Max] | 12 gal/min |
| Rotation | Standard Rotation |
| Recommended System Working Temperature [Min] | -30 °F |
| Output Shaft Code | 01 |
| Seal Options | Standard |
| Torque | 73 Nm |
| Corrosion Resistant | No |
| Duty | Standard-Duty |
| Front Seal Kit If Available | 60540-000 |
| Mount Type | 2 Bolt |
| Motor Element | Gerotor |
| Mounting Holes | 0.535 in |
| Displacement | 46 cm3/Rev |
| Material | Cast Iron |
| Port Size | 7/8-14 |
| Brake Type | Hydraulic |
| Design Code | 9 |
| Port Size & Location | SAE-10 Side |
| Series | H Series |
| Paint/Packaging | Low Gloss Black, Individual Box |
| Splines | 0 |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Pilot Diameter | 3.25 in |
| Port Type | SAE O-Ring |
| Flow Rate | 45 lpm |
| Case Drain | 0.4375-20 UNF-2B SAE O-Ring Port (End Cap) |
| RPM [Min] | 969 rpm |
| Inlet Pressure [Max] | 2500 psi |
| Special Features Hardware Code | 00 |
| Motor Type | Spool Valve |
| Intermittent Pressure [Max] | 165 bar |
| Bolt Circle Dia. | 4.19 in |
| Weight | 13.0 LB |
