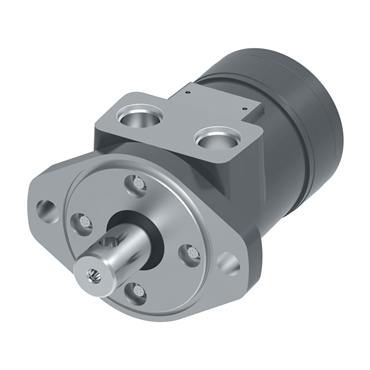

- Spool Valve Motor
- Cast Iron Material
- 7/8-14 Prort Size
- SAE O-Ring Port
- 2 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Special Features Hardware Code | 00 |
| Paint/Packaging | Low Gloss Black, Individual Box |
| Pilot Diameter | 3.25 in |
| Seal Options | Standard |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Port Code | A |
| Bolt Circle Dia. | 4.19 in |
| Motor Element | Gerotor |
| RPM [Min] | 353 rpm |
| Intermittent Pressure [Max] | 155 bar |
| Seal Material | Buna-N |
| Flow Rate | 57 lpm |
| Case Drain | None |
| Shaft Type | Straight w/ Cross Hole |
| Port Type | SAE O-Ring |
| Motor Type | Spool Valve |
| Maximum Speed @ Continuous Flow | 353 rpm @ 15 gal/min |
| Brake Type | Hydraulic |
| Front Seal Kit If Available | 60540-000 |
| Material | Cast Iron |
| Paint | Primer Low Gloss Black |
| RPM [Max] | 353 rpm |
| Displacement (in³/rev) | 9.7 |
| Output Shaft Type | Straight |
| Mounting Hole Size | 0.54 in |
| Series | H Series |
| Mounting Holes | 0.535 in |
| Output Torque at Rated PSI (inch/pounds) | 2062.22 in lb |
| Recommended System Working Temperature [Max] | 180 °F |
| Design Code | 9 |
| Recommended System Working Temperature [Min] | -30 °F |
| Output Shaft Code | 08 |
| Port Location | Side Port |
| Duty | Standard-Duty |
| Displacement | 159 cm3/Rev |
| Port Size | 7/8-14 |
| Port Size & Location | SAE-10 Side |
| Rotation | Standard Rotation |
| Inlet Pressure [Max] | 2500 psi |
| Flow [Max] | 15 gal/min |
| Shaft Size & Type | 1 in Straight, w/ Cross Hole |
| Pressure [Max] | 1650 psi |
| Corrosion Resistant | No |
| Torque | 233 Nm |
| Special Features Assembly Code | 0 |
| Flange Orientation | Standard |
| Splines | 0 |
| Mount Type | 2 Bolt |
| Case Drain Code | 0 |
| Mounting Type Code | A |
| Paint Code | A |
| Weight | 12.5 LB |
