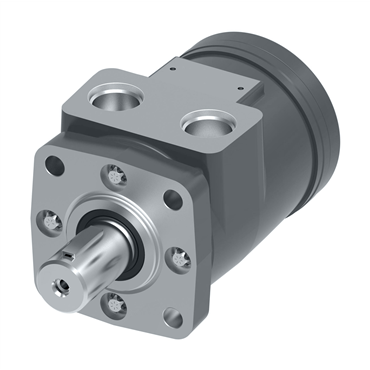

- Spool Valve Motor
- Cast Iron Material
- 7/8-14 Prort Size
- SAE O-Ring Port
- 4 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Pressure [Max] | 1800 psi |
| Shaft Type | Straight w/ Woodruff Key |
| Rotation | Standard Rotation |
| Special Features Hardware Code | AA |
| Pilot Diameter | 1.75 in |
| Port Code | A |
| Port Location | Side Port |
| Mount Type | 4 Bolt |
| Mounting Holes | 3/8-16 |
| Case Drain | None |
| Torque | 56 Nm |
| Output Shaft Type | Straight |
| Front Seal Kit If Available | 60540-000 |
| Maximum Speed @ Continuous Flow | 1021 rpm @ 10 gal/min |
| Mounting Hole Size | 3/8-16 UNC-2B |
| Paint/Packaging | Primer Low Gloss Black, Individual Box |
| Flange Orientation | Standard |
| Paint Code | A |
| Flow [Max] | 10 gal/min |
| Recommended System Working Temperature [Max] | 180 °F |
| Flow Rate | 38 lpm |
| Paint | Primer Low Gloss Black |
| Port Size & Location | SAE-10 Side |
| Motor Type | Spool Valve |
| Design Code | 9 |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Special Features Assembly Code | 0 |
| Series | H Series |
| Duty | Standard-Duty |
| Material | Cast Iron |
| Displacement | 36 cm3/Rev |
| Motor Element | Gerotor |
| Port Type | SAE O-Ring |
| Brake Type | Hydraulic |
| RPM [Max] | 1021 rpm |
| Splines | 0 |
| Output Shaft Code | 01 |
| Bolt Circle Dia. | 3 1/4 in |
| Corrosion Resistant | No |
| Mounting Type Code | B |
| Port Size | 7/8-14 |
| Seal Options | Standard |
| Seal Material | Buna-N |
| Geroler Options | Free Running |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Special Features | Free Running Gerotor |
| Geroter/Geroler Options | Free Running |
| Output Torque at Rated PSI (inch/pounds) | 496 in lb |
| RPM [Min] | 1021 rpm |
| Case Drain Code | 0 |
| Displacement (in³/rev) | 2.2 |
| Intermittent Pressure [Max] | 165 bar |
| Recommended System Working Temperature [Min] | -30 °F |
| Inlet Pressure [Max] | 2500 psi |
| Weight | 11.2 LB |
