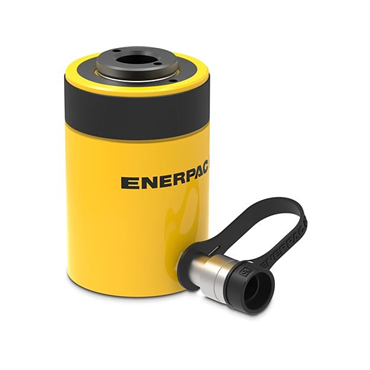

Single-Acting Hydraulic Cylinder

RCH302

Single-Acting Hydraulic Cylinder
Item #110004039
  • 2.5 in Stroke
  • 4.5 in Outside Diameter
Single-Acting Hydraulic Cylinder
    Shipment Options
  • 2.5 in Stroke
  • 4.5 in Outside Diameter

features

  • Hollow plunger design allows for both pull and push forces
  • Single-acting spring return
  • Nickel-plated, floating center tube on models over 20 Tons increases product life
  • Baked enamel finish for increased corrosion resistance
  • Collar threads for easy fixturing
  • Features CR400 Coupler
Action Single-Acting
Collapsed Height [Min] 5 in, 128 mm
Cylinder Capacity Advance [MAX] 326 kN
Cylinder Class 30 Ton
Bore Size 3.5 in, 88.9 mm
Base Mounting Holes Bolt Circle 3.63 in, 92.2 mm
Plunger Diameter 2.5 in, 63.5 mm
Stroke 2.5 in, 64 mm
Surface Treatment Paint
Base Mounting Holes Thread 3/8-16 UNC
Series RCH
Maximum Operating Pressure 10000 psi
Center Hole Diameter 1.31 in, 33.3 mm
Saddle Diameter 2.5 in, 63 mm
Oil Capacity - Advance 18.05 in3, 298 cm3
Operating Pressure Ranges [MAX] 10000 psi
Stroke Range 2.0 to 2.99 in, 48 to 94 mm
Cylinder Type Hollow Plunger
Cylinder Effective Area - Advance 7.22 in2, 46.6 cm2
Centre Hole Diameter 1.31 in, 33.3 mm
O.D. 4.5 in, 114 mm
Material Steel
Collapsed Height [Max] 9.99 in, 254 mm
Collar Thread 4 1/2-12
Body Material Steel
Return Type Single-Acting, Spring Return
Collapsed Height 7.03 in, 178 mm
Operating Pressure [Max] 10000 psi, 700 bar
Plunger Thread Length 0.88 in, 22 mm
Plunger Type Hollow
Saddle Protrusion From Plunger 0.38 in, 9 mm
Base Mounting Holes Thread Depth 0.55 in, 14 mm
Collar Thread Length 1.66 in, 42 mm
Extended Height 9.53 in, 242 mm
Coupler Used CR400 Coupler
Base To Advance Port 0.85 in, 21 mm
Cylinder Bore Diameter 3.5 in, 88.9 mm
Plunger Internal Thread 1 13/16-16 UN
Weight 24.4 LB
EAN or UPC 662005302758
