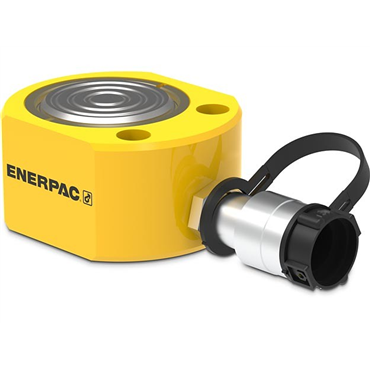

Single-Acting Hydraulic Cylinder

RSM300

Single-Acting Hydraulic Cylinder
Item #110029763
  • 0.5 in Stroke
  • 4.63 in x 3.75 in Outside Diameter
Single-Acting Hydraulic Cylinder
    Shipment Options
  • 0.5 in Stroke
  • 4.63 in x 3.75 in Outside Diameter

features

  • Compact, flat design for use where other cylinders will not fit
  • Mounting holes permit easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • CR400 coupler and dust cap included
  • Hard chrome plated high-quality steel plungers
  • Grooved plunger ends require no saddle
  • Single-acting spring return
Series RSM
Operating Pressure Ranges [MAX] 10000 psi
Collapsed Height 2.31 in, 58 mm
Coupler Used CR400 Coupler
Plunger To Mounting Hole 1.75 in, 44 mm
Cylinder Capacity Advance [MAX] 295 kN
Stroke Range 0 to 0.99 in, 0 to 23 mm
Maximum Operating Pressure 10000 psi
Saddle Protrusion From Plunger 0.08 in, 2 mm
Cylinder Effective Area - Advance 6.49 in2, 42.1 cm2
Base Mounting Hole Diameter 0.4 in, 10 mm
Cylinder Type Low Height
Base Mounting Hole Counter Bore Diameter 0.63 in, 15.9 mm
Base Mounting Hole Pitch 2.06 in, 52.3 mm
Base Mounting Hole Counter Bore Depth 0.44 in, 11.2 mm
Cylinder Bore Diameter 2.88 in, 73.2 mm
Cylinder Class 30 Ton
Stroke 0.5 in, 13 mm
Extended Height 2.81 in, 71 mm
Return Type Single-Acting, Spring Return
Plunger To Base 1.88 in, 47 mm
Surface Treatment Paint
Action Single-Acting
Material Steel
O.D. 4.63 in x 3.75 in, 117 mm x 95 mm
Base To Advance Port 0.75 in, 19 mm
Body Material Steel
Bore Size 2.88 in, 73.2 mm
Operating Pressure [Max] 10000 psi, 700 bar
Plunger Type Solid
Plunger Diameter 2.5 in, 63.4 mm
Oil Capacity - Advance 3.25 in3, 55 cm3
Collapsed Height [Max] 4.99 in, 127 mm
Weight 10.0 LB
EAN or UPC 662005302376
