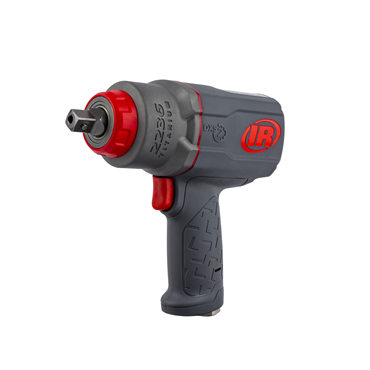

Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years — and the performance, durability, and power of the 2236 1/2” pneumatic impact is no different. Our patented Drive Xchange System™ lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand — without losing a single ft-lb of power. Innovation: Ingersoll Rand’s patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.
features
Patented Drive Xchange System™: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8, in 1/2 in, and 3/4 in drive options and 5 different anvil lengths, you can do more work with less equipment.
Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
Quiet: 4 decibels quieter running from a patented motor design.
Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool’s hammer for more efficient operation and increased run time.
Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils.
Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4 in overall length.
Drive Xchange System (TM) Anvil, Quiet Tool, Titanium Hammer case
Retainer Type
Pin Detent
Impacting Sound Pressure
94.2 / 105.2 A
Breakaway Torque
1500 ft-lb
Fastening Torque
900 ft-lb
Duty Rating
Heavy Duty
Impact Mechanism
Twin Hammer
Length
7.36 in
Reverse Torque [Max]
1000 ft-lb
Blows/Minute
1350
Standard Bolt Capacity
0.75 in
Power Source
Air Powered
Width
2.9 in
Vibration Uncertainy (K)
4.3 m/s2
Air Inlet
1/4 in NPT
Drive Type
Square
Warranty
2-Year
Vibration Level
11.4 m/s2
Anvil Length
Standard
Power to Weight Ratio (Nut-Busting Torque/Weight)
339 ft-lb/lb
Hose Size [Min]
3/8 in
Free Speed [Max]
7500 rpm
Drive Size
1/2 in
Bolt Diameter [Max]
1 1/4 in
Motor
Reverse Bias
Side to Center Distance
1.45 in
Height
7.34 in
Standard
ISO 11148-6, Cagi B186, ISO 28927-2, ISO 15744
Housing Material
Impact and Chemical Resistant Composite Housing
Vanes
6
Actuation Type
Trigger
Air Consumption @ Load
36 cfm, 1090 lpm
Handle Type
Pistol Grip
Average Air Consumption
9 cfm, 255 lpm
Speed Setting
Variable Speed
Free Speed Sound Pressure
96.4 / 107.4 A
Air Pressure
90 psi
Hammer Case
Titanium
No. of Power Settings
3
Exhaust Location
Bottom
End Plates
Steel
Weight
4.5 LB
EAN or UPC
663023171012
