Alternate Products

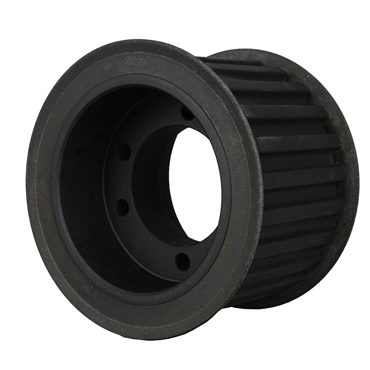

- Timing Belt Pulley
- 7/8 in Belt Pitch
- XH Belt Size
- 20 Tooth
- 4 in Belt Width
description
- Timing pulleys have evenly spaced axial grooves cut in their periphery to make correct, positive engagement with the mating teeth of the belt. These pulleys are designed so that the teeth of the belt enter and leave the grooves with negligible friction. All pulleys, stock and made to order, have minimum tooth-to-groove clearance (backlash). Pulleys are available in a wide range of stock widths and diameters.
applications
- Agitators and mixers
- Compressors
- Conveyors
- Fans and blowers
- Paper machinery
- Pumps
features
- Constant speed
- Nonslip
- Minimum backlash
- High modulus strength member
- Freedom from initial belt tension
- Compact design
- Lightweight
- No lubrication required
| Outside Dia. | 5.462 in |
| Length Through Bore | 4.688 in |
| Finished Bore | N/A |
| Teeth Face Width | 4.688 in |
| Material External Use | Steel |
| Material | Steel |
| Material Internal Use | Carbon Steel |
| Bushing Bore Size [Min] | 0.5 in |
| Bushing Type | QD |
| Bore Type | Bushed |
| Flange O.D. | 6.093 in |
| Belt Pitch | 7/8 in |
| Type | JF-1 |
| Bore Size [Max] | 2.625 in |
| Belt Size | XH |
| Hub Type | A |
| Bushing Bore Size [Max] | 2.625 in |
| Pitch Dia. | 5.57 in |
| Bushing Series | SK |
| No. of Teeth | 20 |
| Construction Internal | Solid |
| Hardened Teeth | With Hardened Teeth |
| Belt Width | 4 in |
| Pitch Diameter | 5.57 in |
| Bore Size [Min] | 0.5 in |
| Weight | 12.4 LB |
| EAN or UPC | 697950149080 |
