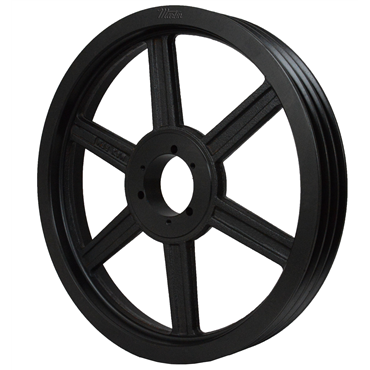

Cast Iron B Belt Cross 9.4 in OD 3 Grooves Sheave

3 B 94 SK

Cast Iron B Belt Cross 9.4 in OD 3 Grooves Sheave
Item #100786238
  • B Belt Cross Section
  • 9.4 in Outer Diameter
  • 2.5 in Face Width
  • 3 Groove
Cast Iron B Belt Cross 9.4 in OD 3 Grooves Sheave
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • B Belt Cross Section
  • 9.4 in Outer Diameter
  • 2.5 in Face Width
  • 3 Groove

description

  • Martin v-belt sheaves meet the toughest demands of industry.
Bushing Bore Size [Min] 0.5 in
Material Internal Use Cast Iron
Bore Type Bushed
Sheave Type QD
Material External Use Cast Iron
Bore Size [Min] 0.500 in
Belt Cross Section B
Bushing Bore [Min] 0.5 in
Face Width 2.50 in
Belt Size A, B
No. of Grooves 3
Construction Internal Arm/Spoke
Inch/Metric Inch
Bushing Style QD
Bushing Bore Size [Max] 2.625 in
Bushing Series SK
Outside Dia. 9.75 in
Pitch Dia. 9.4 in
O.D. 9.4 in
Bushing Type QD
Weight 16.0 LB
EAN or UPC 697950113302
