- B3 Gear Style
- 14.5° Pressure Angle
- 160 Teeth
- 10 Diametral Pitch
- 16 in Pitch Diameter
description

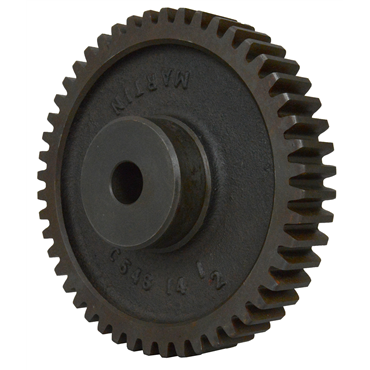

- Martin Stock Spur Gears are available in five different styles. Contact your local Applied® service center for other styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished plain with hub, web with lightening holes and with spoke. Cast gears are cast with larger hub to provide extra strength and to allow for larger bores.
features
- More cost effective, quieter running and metallic options
- Four ball wear test 40 kg: 63 mm
- Reliability from steel, cast iron and brass
- Parallel shaft applications
- Base oil viscosity: 500 SUS @ 100 °F
| Material External Use | Cast Iron |
| AGMA Quality | 6 |
| O.D. | 16.2 in |
| Torque at 1800 RPM | 264.3549 lb/in |
| Bore Size | 1.000 in |
| Bore Type | Finished Bore |
| Length Through Bore | 2 in |
| Origin | Reborable |
| Pressure Angle | 14 1/2 degrees |
| Class | 6 |
| Material Internal Use | Cast Iron |
| Inch/Metric | Inch |
| Torque at 200 RPM | 1424.365 lb/in |
| Style | Spoke Style |
| Hub Projection | 1 in |
| Bore Dia. [Max] | 1 11/16 in |
| Torque at 300 RPM | 1119.744 lb/in |
| Set Screw | No |
| Type | B3 |
| No. of Teeth | 160 |
| Outside Dia. [Min] | 16.2 in |
| Keyway | w/o Keyway |
| Torque at 600 RPM | 670.1658 lb/in |
| Pitch Diameter [Min] | 16 in |
| Hardened Teeth | Without Hardened Teeth |
| Diametral Pitch | 10 |
| Material | Cast Iron |
| Outside Dia. | 16.2 in |
| Bore Size [Max] | 1.688 in |
| Torque at 1200 RPM | 379.7256 lb/in |
| Face Width | 1 in |
| Torque at 900 RPM | 487.3933 lb/in |
| Gear Style | B3 |
| Pitch Dia. | 16 in |
| Bore Dia. [Min] | 1 in |
| Bore Size [Min] | 1 in |
| Pitch Diameter | 16 in |
| Hub Dia. | 2.7345 in |
| Hub O.D. | 2.75 in |
| Set Screw Size | N/A |
| Finished Bore Size | 1 in |
| Hub Style | B |
| Weight | 15.68 LB |
| EAN or UPC | 697950056661 |
