D140J35

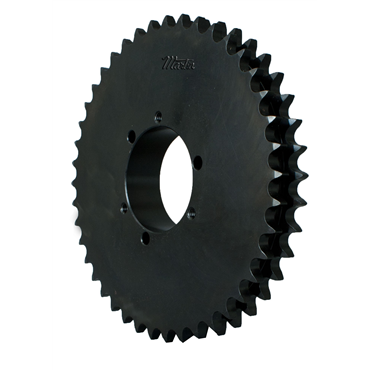

Double Strand Sprocket; 140-2 Chain Size; 35 Teeth; Requires J QD Bushing

Item #100803967

Auto Replenish

each One-time purchase

Product Details

Tolerances meet or exceed ANSI standards
Manufactured of high carbon steel
Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Bores are concentric to pitch line, minimizing run out
Interchangeable with other manufacturers’ QD bushings

Specifications

Hardened Teeth	Without Hardened Teeth
Bushing Series	J
Construction Internal	Welded
Sprocket Style	B
Material External Use	Steel
Length Through Bore	3.188 in
Hub Projection	1.56 in
Bushing Bore [Min]	1.25 in
Material	Steel
Bore Type	Bushed
Chain Sprocket Number	140
O.D.	20.494 in
Chain Sprocket Pitch	1.75 in
Pitch Dia.	19.523 in
Hub Length	1.56 in
Overall Length Less Threads	4.5 in
Hub O.D.	7.75 in
Pitch Diameter	19.52 in
Caliper Diameter	18 1/2 in
Screw Size	5/8-11 UNC
No. of Teeth Rows Strands	2
Bore Size [Min]	1.25 in
Bushing Bore Size [Min]	1.25 in
No. of Teeth	35
Tooth Width	0.894 in
Material Internal Use	Carbon Steel
Width Across Teeth	2.818 in
Outside Dia.	20.494 in
Outside Dia. [Min]	20.494 in
Chain No.	140-2
Bushing Bore [Max]	4.5 in
Overall Length	4.5 in
Inch/Metric	Inch
No. of Strands Across	2
Bushing Type	QD
Bore Size [Max]	4.5 in
Hub Dia.	7 1/2 in
Chain Pitch	1.750 in
Single Strand Tooth Thickness	0.894 in
Bushing Bore Size [Max]	4.5 in
Type	C
Weight	128.0 LB
EAN or UPC	697950026640
