48-22-5107

SUPERSEDED TO MILT_48-22-5107E, MTRL - 120795399

Item #112920526

Auto Replenish

each One-time purchase

Product Details

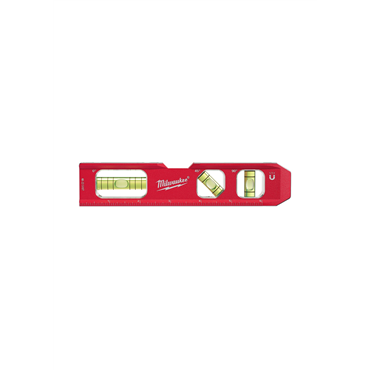

The Milwaukee billet torpedo level features amplified rare earth magnets for over 2X the holding power of leading competitors. The maximized viewing area ensures that the user can make a fast and accurate readings of 1/8 in. and 1/4 in. per foot in any position. The optimized top and back side pipe grooves make this the optimal tool for working with both small and large diameter pipes. The 48-22-5107 Milwaukee billet level also offers a weld clearance and laser etched ruled edge.

Amplified rare earth magnets - 2X holding power on metal jobsite material
Maximized viewing area allows for quickly setting and identifying pitch in 1/8 in. and 1/4 in. per foot
Top and back side precision milled v-groove working surfaces give a stable hold to large or small diameter pipe
Laser etched ruled edge allows for quick accurate measurements
Weld clearance gap allows leveling between weld lines
Billet aluminum frame to hold up to harsh jobsite conditions
Compact design for working in tight spaces

Specifications

No. of Vials Measuring Level	1
Vial Positions	1 Level, 1 Plumb
Length	10.51 in
Material	Aluminum
Case Included	No
No. of Vials Measuring Plumb	1
No. of Vials	3
Accuracy	0.0005 in
Level Type	Torpedo
Level Accuracy	0.0005 in per inch
Depth	1 in
Included	(1) Compact Billet Torpedo Level
Type	Torpedo Level
Color	Red
Width	3.23 in
Weight	0.45 LB
EAN or UPC	45242478613
