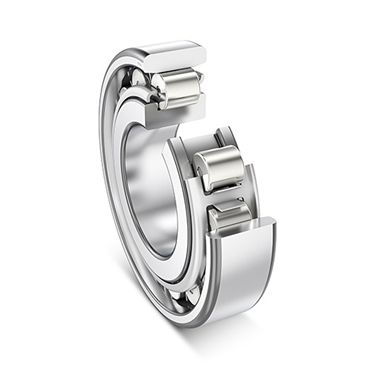

- Cylindrical Roller Bearing
- 65 mm ID x 140 mm OD x 33 mm Wide
- Removable Outer Ring - Straight
- Pressed Steel Cage
- Standard Capacity
description
- Cylindrical roller bearings are designed to carry heavy radial loads and are suitable for high speed applications. Their rolling elements are ground to provide maximum contact with the raceway and are precisely crowned to avoid edge loading due to shaft misalignment.
| Radial Internal Clearance Specification | Normal Clearance |
| Cage Material | Pressed Steel |
| Precision Ground | Yes |
| End Type | Open End |
| Bore Type | Round Bore, Metric Type |
| Tolerance | Iso Class 0 (RBEC 1) |
| Bearing Design | Removable Outer Ring – Straight |
| Dynamic Load Rating | 135000 N |
| Capacity | Standard Capacity |
| Static Load Rating [Max] | 139000 N |
| I.D. | 65 mm |
| Enclosure | Open |
| O.D. | 140 mm |
| Radial Internal Clearance | Normal |
| Limiting Speed - Grease | 4300 rpm |
| Oil Hole | w/o Oil Hole |
| Outer Ring Width | 33 mm |
| Limiting Speed - Oil | 5300 rpm |
| Weight | 5.256 LB |
| EAN or UPC | 29176051593 |
