Lubricator: Polycarbonate Bowl w/Metal Bowl Guard, No Drain, w/Fill Plug
description

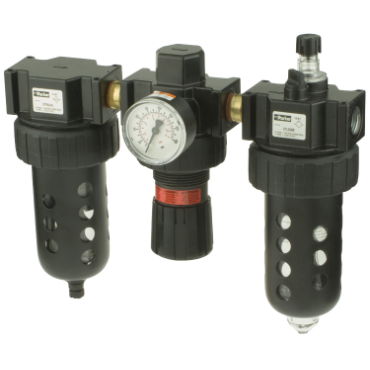

Preassembled three-piece unit with filter, regulator, and lubricator. These units are convenient, compact , and ready to install. They filter harmful particulates and liquid from the air supply, regulate the pressure, and add a fine oil mist to protect air tools, valves, and cylinders.
features
Unique deflector plate ensures maximum water and dirt separation
Solid control piston with lip seal for extended life
compliances
OSHA
Size Designation
Standard
Lubricator Bowl Capacity
6 oz
Lubricator Drain Type
No Drain
Mounting Bracket Kit
PS807P
Relieving
Relieving
Pressure Range [Max]
125 psig
Element Micron Rating
40 µm
Flow
90 SCFM
Port Type
NPT
Pressure Range [Min]
2 psig
Assembly Type
Close Nippled
Unit Type
Three-Unit Combo
Lubricator Type
Mist
Port Size
1/2 in
Lubricator Fill Option
w/Fill Plug
Mounting Options
w/o Brackets
Filter Bowl Capacity
7.2 oz
Series
07
Lubricator Bowl Type
Polycarbonate Bowl w/ Metal Bowl Guard
Knob Type
Non-Rising Knob
Filter Bowl Type
Polycarbonate Bowl w/ Metal Bowl Guard
Has Gauge
Yes
Body Size
1/2 in
Filter Drain Type
Twist Drain
Weight
9.0 LB
Prop 65
