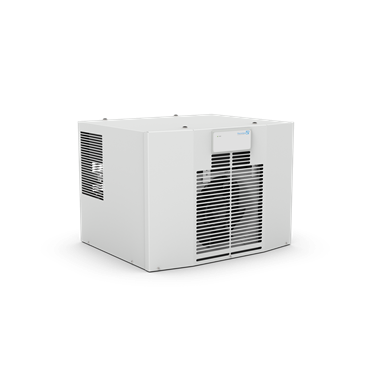

The roof-mounted concept saves floor space, keeps escape routes clear and protects against mechanical damage during ongoing production operations. The DTT roof-mounted cooling units have a unique, patented condensate management system. The innovative arrangement of the cooling circuits literally turns the functioning of conventional roof-mounted cooling units upside down and reliably prevents condensate from entering the enclosure.
features
Compatible with cabinets of every manufacturer and is available in 3 sizes and 6 performance classes.
Powder coated steel cover (no plastic) is designed for manufacturing environments.
Easily painted to match enclosure or machine design.
Frontside removable cover allows for easy access to the components.
Cooling Capacity
5500-7000 BTU/hr
Type Rating
Type 12
Standards
UR, cUR, CE, EAC
Controller
Standard Controller
Noise Level
<62 dB(A)
Cover Material
Electrostatically Powder Coated Steel
Color
Light Gray - RAL 7035
Fuse Type
CC
Fuse Rating
6 A
Rated Voltage
400 V/460 V
Mounting Position
Top Mount
Frequency
50/60 Hz
Weight
112.455 LB
EAN or UPC
4061131055082
