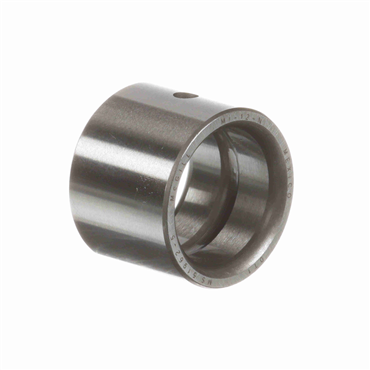

Inner Ring

IR7193

Inner Ring
Item #100740143
  • 0.75 in Inner Diameter
  • 1 in Outer Diameter
Inner Ring
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.75 in Inner Diameter
  • 1 in Outer Diameter

compliances

  • MS-51962-5
Radial Internal Clearance Specification N/A
Bore Shape Round
Material 52100 Bearing Quality Steel
Shaft Diameter - Slip Fit [Max] 0.7497 in
Shaft Diameter - Slip Fit [Min] 0.7492 in
Operating Temperature [Max] 300 ⁰F
Standard MS 51962
Shaft Diameter - Press Fit [Max] 0.7507 in
Lubrication Type Lubrication Groove/Hole
End Type N/A
Fillet Radius 0.04 in
Cage Material N/A
Radial Internal Clearance N/A
O.D. 1 in, 25.4 mm
Finish Chrome Steel
Inch/Metric Inch
Tolerance Iso Class 0 (RBEC 1)
Enclosure N/A
Style Precision Ground Inner Ring
I.D. 0.75 in, 19.05 mm
Type Inner Ring
Precision Ground Yes
Capacity N/A
Bore Type Round Bore, Inch Type
Bearing Design Removable Inner Ring – Straight
Shaft Diameter - Press Fit [Min] 0.7503 in
Oil Hole w/Oil Hole
Total Width 0.76 in, 19.304 mm
Weight 0.065 LB
EAN or UPC 637400011215
