IR7345

52100 Bearing Quality Steel 1.625 in Heavy Duty Pitchlign Inner Ring

Item #100740186

Auto Replenish

each One-time purchase

Alternate Products

Smith Bearing IRR-1-5/8-3

Ancillary Bearings Inner Ring Races

Item #113067518

each

Compare

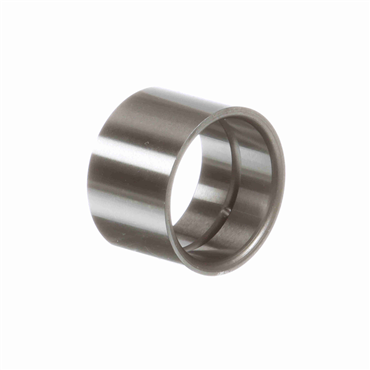

McGill MI 26 2S

Bearing Steel Inner Ring For Radial Needle Roller Bearing

Item #101087157

each

Compare

Product Details

Specifications

I.D.	1.625 in, 41.275 mm
Lubrication Type	Lubrication Groove/Hole
Bearing Design	Removable Inner Ring – Straight
Bore Shape	Round
Shaft Diameter - Press Fit [Max]	1.6258 in
Style	Precision Ground Inner Ring
Shaft Diameter - Slip Fit [Min]	1.624 in
Finish	Chrome Steel
Material	52100 Bearing Quality Steel
Bore Type	Round Bore, Inch Type
Radial Internal Clearance	N/A
Shaft Diameter - Slip Fit [Max]	1.6246 in
Capacity	N/A
Standard	MS 51962
Shaft Diameter - Press Fit [Min]	1.6254 in
O.D.	1.938 in, 49.213 mm
Enclosure	N/A
Tolerance	Iso Class 0 (RBEC 1)
Radial Internal Clearance Specification	N/A
Type	Inner Ring
Fillet Radius	0.06 in
Oil Hole	w/Oil Hole
Cage Material	N/A
Inch/Metric	Inch
Precision Ground	Yes
End Type	N/A
Total Width	1.26 in, 32.004 mm
Operating Temperature [Max]	300 ⁰F
Weight	0.311 LB
EAN or UPC	637400011659
