IR9567

52100 Bearing Quality Steel 2.75 in Heavy Duty Pitchlign Inner Ring

Item #100740225

Auto Replenish

each One-time purchase

Alternate Products

Koyo Corp. IR-445228

High Carbon Chrome Steel Inner Ring

Item #101713461

each

Compare

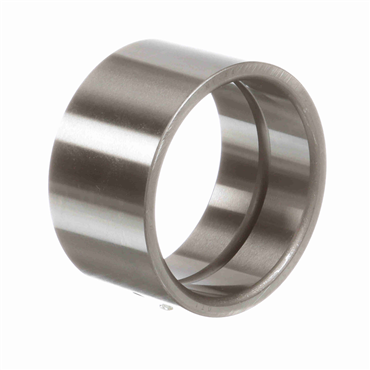

McGill MI 44

Bearing Steel Inner Ring For Radial Needle Roller Bearing

Item #101087164

each

Compare

Smith Bearing IRR-2-3/4

Ancillary Bearings Inner Ring Races

Item #113067528

each

Compare

Product Details

Specifications

Shaft Diameter - Press Fit [Max]	2.751 in
Operating Temperature [Max]	300 ⁰F
Standard	MS 51962
O.D.	3.25 in, 82.55 mm
Style	Precision Ground Inner Ring
Shaft Diameter - Press Fit [Min]	2.7505 in
Material	52100 Bearing Quality Steel
Finish	Chrome Steel
Lubrication Type	Lubrication Groove/Hole
Radial Internal Clearance Specification	N/A
I.D.	2.75 in, 69.85 mm
Total Width	1.76 in, 44.704 mm
Bore Shape	Round
Radial Internal Clearance	N/A
Oil Hole	w/Oil Hole
Bearing Design	Removable Inner Ring – Straight
Capacity	N/A
Precision Ground	Yes
Enclosure	N/A
Bore Type	Round Bore, Inch Type
Tolerance	Iso Class 0 (RBEC 1)
Shaft Diameter - Slip Fit [Max]	2.7496 in
I.D. Tolerance	+0.0000 in / -0.0010 in
Cage Material	N/A
Type	Inner Ring
Shaft Diameter - Slip Fit [Min]	2.7489 in
End Type	N/A
Inch/Metric	Inch
Fillet Radius	0.08 in
Weight	1.171 LB
EAN or UPC	637400012366
