SJ6849

Pitchlign® Series 5 in ID Heavy Duty Unsealed Needle Bearing

Item #101157692

Auto Replenish

each One-time purchase

Alternate Products

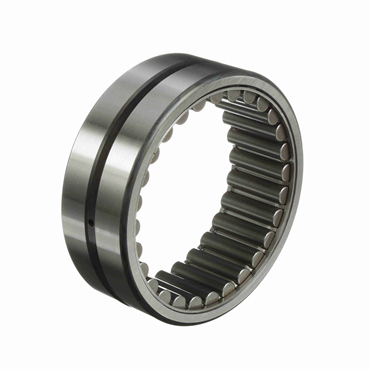

McGill MR 80

Cagerol® Standard Radial Needle Roller Bearing Without Inner

Item #101087340

each

Compare

Product Details

Specifications

Compatible Inner Ring	IR6849
Shaft Diameter - Slip Fit [Min]	4.999 in
Shaft Diameter - Slip Fit [Max]	5 in
Capacity	Standard Capacity
Style	Caged Needle Bearing
Static Load Rating	111000 lbf, 493752.42 N
Oil Hole	w/Oil Hole
Finish	Chrome Steel
Type	Unsealed
Housing Bore - Press Fit [Min]	6.498 in
Inside Diameter Tolerance [Max]	5.0027 in
O.D.	6.5 in, 165.1 mm
Shaft Diameter - Press Fit [Max]	4.9983 in
Enclosure	Open
Operating Temperature [Min]	-40 ⁰F
Dynamic Load Rating	46200 lbf
Operating Temperature [Max]	300 ⁰F
Inside Diameter Tolerance [Min]	5.0013 in
Origin	Needle Radial
Radial Internal Clearance	N/A
Lubrication Type	Hole On Outer Ring
Radial Internal Clearance Specification	N/A
Limiting Speed - Oil	2700 rpm
Tolerance	Iso Class 0 (RBEC 1)
Static Load Rating (lb)	111000
Housing Bore - Press Fit [Max]	6.4995 in
Series	Pitchlign®
No. of Rows	Single
Inch/Metric	Inch
Cage Material	Steel
Self Aligning	No
Shaft Diameter - Press Fit [Min]	4.9973 in
RPM [Max]	2700 rpm
Total Width	2.25 in, 57.15 mm
Fillet Radius	0.12 in, 3.048 mm
I.D.	5 in, 127 mm
Bore Type	Round Bore, Inch Type
Bearing Design	Outer Ring & Roller Assembly
Dynamic Load Rating (lb)	56500
Standard	MS 51961
Precision Ground	Yes
Material	52100 Bearing Quality Steel
Housing Shoulder Diameter	5.625 in
Housing Bore - Slip Fit [Max]	6.5016 in
Bore Shape	Round
End Type	Open End
Housing Bore - Slip Fit [Min]	6.5 in
Weight	6.65 LB
EAN or UPC	637400013899
