SJ7345

Pitchlign® Series 1.938 in ID Heavy Duty Unsealed Needle Bearing

Item #100740187

Auto Replenish

each One-time purchase

Alternate Products

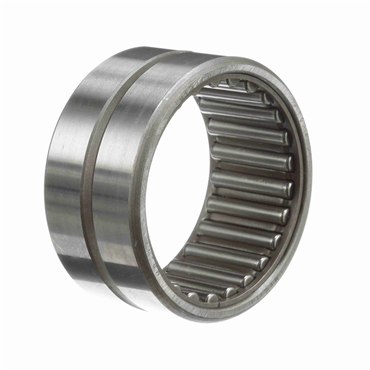

McGill MR 31

Cagerol® Standard Radial Needle Roller Bearing Without Inner

Item #101087282

each

Compare

Product Details

Specifications

Tolerance	Iso Class 0 (RBEC 1)
Fillet Radius	0.06 in, 1.524 mm
Housing Bore - Slip Fit [Min]	2.5 in
Shaft Diameter - Press Fit [Min]	1.9359 in
Radial Internal Clearance	N/A
Radial Internal Clearance Specification	N/A
Housing Bore - Press Fit [Min]	2.4985 in
Inside Diameter Tolerance [Max]	1.9395 in
Inside Diameter Tolerance [Min]	1.9385 in
O.D.	2.5 in, 63.5 mm
Bore Shape	Round
Finish	Chrome Steel
Self Aligning	No
No. of Rows	Single
Precision Ground	Yes
Style	Caged Needle Bearing
Series	Pitchlign®
Oil Hole	w/Oil Hole
Bearing Design	Outer Ring & Roller Assembly
Housing Bore - Slip Fit [Max]	2.5012 in
Inch/Metric	Inch
Bore Type	Round Bore, Inch Type
Standard	MS 51961
Operating Temperature [Min]	-40 ⁰F
Housing Shoulder Diameter	2.1875 in
Enclosure	Open
Compatible Inner Ring	IR7345
Limiting Speed - Oil	6900 rpm
Shaft Diameter - Slip Fit [Min]	1.9369 in
Material	52100 Bearing Quality Steel
Lubrication Type	Hole On Outer Ring
Dynamic Load Rating (lb)	12500
Total Width	1.25 in, 31.75 mm
Housing Bore - Press Fit [Max]	2.4996 in
Static Load Rating (lb)	24300
Dynamic Load Rating	10100 lbf
Capacity	Standard Capacity
Origin	Needle Radial
Type	Unsealed
Cage Material	Steel
Shaft Diameter - Press Fit [Max]	1.9365 in
Operating Temperature [Max]	300 ⁰F
I.D.	1.938 in, 49.213 mm
End Type	Open End
RPM [Max]	6900 rpm
Static Load Rating	24100 lbf, 107202.102 N
Shaft Diameter - Slip Fit [Max]	1.9375 in
Weight	0.53 LB
EAN or UPC	637400015794
