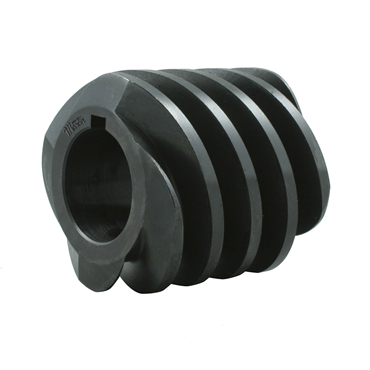

- 12 Diametral Pitch
- 1.000" Pitch Diameter
- 14.5° Pressure Angle
- Right Hand
- Quad Lead
description
- The efficiency of a worm gear drive depends on the lead angle and number of starts in the worm. The angle generally decreases with increasing ratio and worm pitch diameter. For increased efficiency the ratio should be kept low.
features
- Resistance to back driving with some ratios
- Increased efficiency with lower ratios
- Minimal space requirements
- High ratio speed reduction
- Smoothest, quietest form of gearing
- 90° nonintersecting shaft applications
| Material | Steel |
| Pressure Angle | 14 1/2 degrees |
| Hub Dia. | N/A |
| Face Thread Length | 1.125 in |
| No. of Leads | Quadruple |
| Bore Size | 0.625 in |
| Length Through Bore | 1.125 in |
| Right / Left Hand | Right Hand |
| Diametral Pitch | 12 |
| Pitch Diameter | 1 in |
| Hardened Teeth | Without Hardened Teeth |
| Weight | 0.201 LB |
| EAN or UPC | 781711128220 |
