- 7.50" Max Shaft Center Height
- 12.02" Overall Height
- 12" Overall Width
description

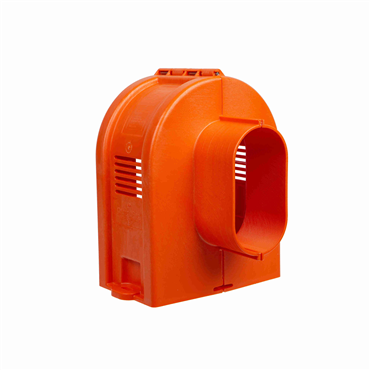

- Orange Peel Motor Coupling Guards are a patented "trim and fit" polyethylene product that offers safety compliance, cost savings and simplified maintenance. Orange Peel guards are sized to your overall application dimensions and trimmed to fit between the connected equipment. Risers are optional. All hardware is stainless steel. Supplied in safety orange color.
features
- Falk Motor Coupling Guard (MCG) for use with NEMA Motor Frames from 182T to 286TS or IEC Motor Frames from 112M to 200L, Size 15, ANSI Safety Orange
compliances
- 0
| Overall Height | 12.02 in |
| Type | Motor Coupling Guard |
| NEMA Motor Frames | 182T - 286TS |
| Shaft Size [Max] | 2.130 in |
| Coupling O.D. | 6.38 in |
| IEC Motor Shaft Dia. [Max] | 55 mm |
| Overall Length | 9.94 in |
| NEMA Motor - Mounting Surface to Center of Shaft | 4 1/2 to 7 in |
| IEC Motor Shaft Dia. [Min] | 28 mm |
| IEC Motor Mounting Surface to Center of Shaft | 112 mm to 200 mm |
| Shaft Center Height w/o Riser [Max] | 7 1/2 in |
| NEMA Motor Shaft Dia. [Max] | 15 5/8 in |
| IEC Motor - Frames | 112M - 200L |
| Volume | 0.236 hl |
| Overall Width | 12 in |
| Motor Frame | 180-280 |
| Guard Size | 15 |
| Distance Between Motor and Driven Equipment [Max] | 12.5 in, 318 mm |
| Shaft Center Height w/o Riser [Min] | 4 1/2 in |
| NEMA Motor Shaft Dia. [Min] | 1 1/8 in |
| Distance Between Motor and Driven Equipment [Min] | 5.81 in, 148 mm |
| Series | MCG |
| Weight | 3.1 LB |
| EAN or UPC | 782934235498 |
