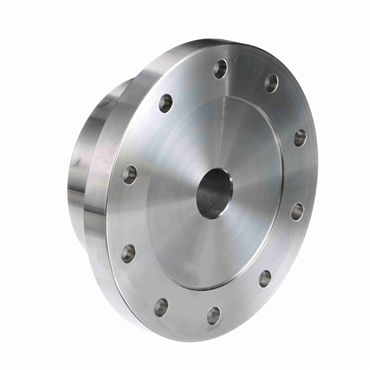

When driving and driven shafts are widely separated, an unsupported or floating shaft is used to the span the gap. The two couplings required at each end of that shaft consist of one half of a standard coupling bolted to a Rigid Hub, each unit called a F
features
Large bore capacity with o-ring seal design. The most economical gear coupling design.
Curved face teeth (sizes 1 through 7) for up to 1.5 degrees static misalignment capability.
Series H coupling sleeves will bolt to all competitor couplings sizes 1 through 7 for interchangability in flex halves.
Precision-drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection.
O.D.
8.375 in
Configuration
Flex-Rigid
Torque Rating
56700 in-lb
Bore with Standard Key For Rigid Hub [Max]
4
Size Code
2.5
Material
Carbon Steel
Hub Dia.
5.75 in
Coupling Size
2.5
Speed [Max]
7900 rpm
Flange Type
Shrouded Bolt
Bolt Type
Shrouded
Coupling Type
Gear
Bore Type
Rough
Inch/Metric
Inch
Length Through Bore
2.906 in, 73.819 mm
Model
Series H
Bore Dia. [Max]
4 in
Component Type
Rigid Hub
Tooth Profile
Crowned
Lubricated
Yes
Sleeve O.D.
8.375 in
Bore Size [Max]
4
Weight
26.28 LB
EAN or UPC
662384110203
