056T17F15944

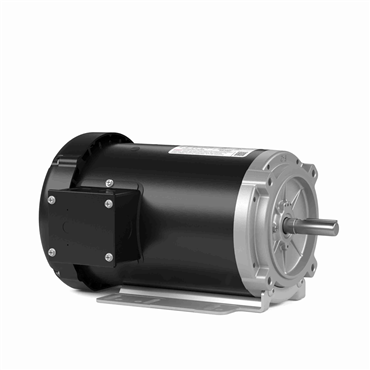

Flex-in-1™ Three Phase General Purpose AC Motor FX12FK003

Item #120197600

56C Frame

TEFC Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Inch/Metric	Inch
Standard	CE, CSA, UL
Amps	0.95 A
Voltage	575 V
RPM [Max]	1725 RPM
Power Rating	0.5 Hp, 0.37 KW
No. of Speeds	1
KVA Code	M
Phase	Three Phase
Bearing Type	Ball
Power Factor	53.3
Poles	4
Starting Type	Line Or Inverter
Frequency	60 Hz
Insulation Class	F
Drive End Bearing	6203
Resistance	40
Shaft Type	NEMA 56
Mounting	Bolt-on Base
Rotation	Reversible
Efficiency	72.1 %
Motor Orientation	Horizontal Or Up Or Down
NEMA Design	B
Service Factor	1.15
Ambient Temperature	104 °F
Frame	56C
Frame Material	Rolled Steel
Shaft Dia.	0.63 in
Duty	Continuous
Motor Application	General Purpose
Electrical Type	Squirrel Cage Inverter Rated
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Weight	0.0 KG
EAN or UPC	691720115213
