113473.00

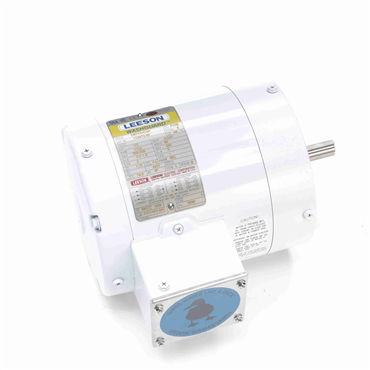

Washdown Duty AC Motor

Item #103239399
each
    Shipment Options
  • IP55IP55

Alternate Products

Product details

  • Three Phase AC Motor
  • 1725 RPM
  • 1/2 hp
  • 208-230/460
  • C-Face - Less Base

features

  • LEESON®’s original moisture-shedding "duck" motor
  • Durable USDA approved white epoxy finish
  • Stainless steel shaft, conduit box cover, nameplate and fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • Moisture-resistant interior components
  • IRIS™ inverter-rated insulation system for service on variable frequency drives
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs

Specifications

Brake Feature No
Voltage 208-230/460
Frame Material Rolled Steel
Model No. 113473
Voltage Rating 208-230/460 V
Full Load Amps 2/1 A
Frame Size 56
Frame 56C
Open End Bearing 6203
Enclosure TENV
Rotation Reversible
Hz 60 Hz
Phase Three Phase
Full Load Efficiency 78.5 %
Input Phase Three Phase
Motor Application Washdown Duty
C Dimension 10.06 in
Insulation F4
Enclosure Designation TENV - Totally Enclosed Non-Ventilated
Mounting C-Face - Less Base
Inch/Metric Inch
Washdown Duty Yes
Poles 4
RPM 1,800 rpm
Efficiency Group 78.5
Full Load rpm 1725 rpm
HP 1/2
Service Factor 1.15
Drive End Bearing 6205
Weight 25.0 LB
EAN or UPC 691720012079

Compliance & Restrictions

  • IP55IP55
