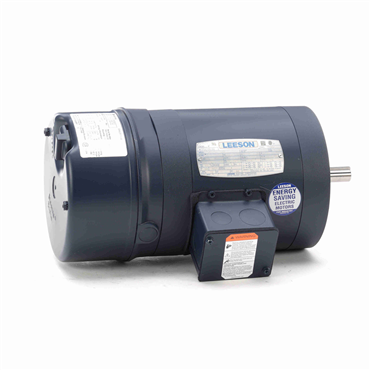

- Brakemotor
- 1/3 hp
- 1,725 rpm
- 208-230/460 Three Phase
- TENV
features
- Fail-safe positive, stop and hold brakemotors
- Brakes are spring set
- Load is stopped automatically when power is turned off
- LEESON® brakemotors feature a power off manual release for convenience, and for use in case of a power failure
- The manual release resets automatically
- The standard brake is manufactured by Stearns
- The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor
| Rotation | Reversible |
| Frame Material | Steel |
| Enclosure | TENV |
| Full Load rpm | 1725 rpm |
| Brake Torque | 3 ft lb |
| Voltage Rating | 208-230/460 |
| Frame | 56C |
| Washdown Duty | No |
| Phase | Three Phase |
| Full Load Amps | 1.3 |
| Insulation | B |
| Enclosure Designation | TENV - Totally Enclosed Non-Ventilated |
| Open End Bearing | 6203 |
| Drive End Bearing | 6203 |
| RPM | 1,800 rpm |
| C Dimension | 13.56 in |
| Brake Feature | Yes |
| Mounting | C-Face - Less Base |
| Service Factor | 1.15 |
| HP | 1/3 |
| Poles | 4 |
| Hz | 60 Hz |
| Motor Application | Brake Motor |
| Voltage | 208-230/460 |
| Efficiency Group | 72 % |
| Full Load Efficiency | 72 % |
| Weight | 29.0 LB |
| EAN or UPC | 691720013250 |
