121881.00

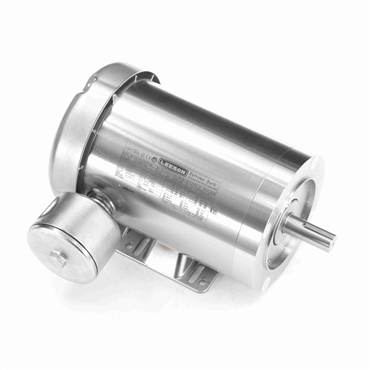

Extreme Duck® Ultra Washguard Stainless Steel AC Motor

Item #101459085

TEFC Enclosure

145TC Frame

+ Show More

Auto Replenish

each One-time purchase

Alternate Products

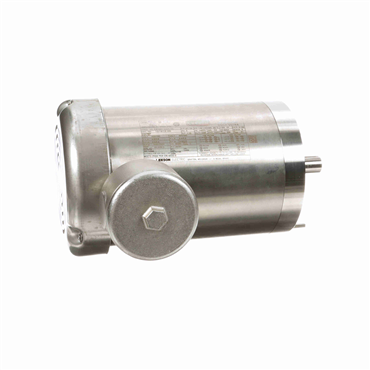

Leeson 121910.00

Extreme Duck® Ultra Washguard Stainless Steel AC Motor

Item #101435621

each

Compare

Product Details

IP69 certified enclosure protection
Fully encapsulated internal epoxy encapsulation reduces points of entry for contaminants and eliminates need for drain plugs and breathers
Two-piece shaft seal technology provides three points of protection on both ends of the motor
Easily removed Q-Car™ rotor cartridge makes bearing replacement ultra simple
360° rotatable round conduit box for convenient wire placement
Colored, non-wicking, chemical and abrasion-resistant leads for easy connection and installation

Specifications

Enclosure	TEFC - Totally Enclosed Fan Cooled
Insulation	F4
Frame Material	Stainless Steel
Input Phase	Three Phase
Full Load Amps	6-5.6/2.8 A
Frame	145TC
C Dimension	12 3/4 in
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Overload Protection	None
Rotation	Reversible
Washdown Duty	Yes
Poles	2
HP	2
Model No.	121881
Open End Bearing	6205
Drive End Bearing	6205
Voltage Rating	230/460
Voltage	208-230/460
RPM	3,600 rpm
Hz	60 Hz
Inch/Metric	Inch
Motor Application	Washdown
Mounting	C-Face - With Base
Service Factor	1.15
Frame Size	145TC
Efficiency Group	Premium Efficient
Phase	Three Phase
Weight	60.0 LB
EAN or UPC	691720989302
