- 1 1/8 in Bore Diameter
- 1.185 in Inner Diameter
- 3.15 in Outer Diameter
- 1 7/16 in Bore Length
description

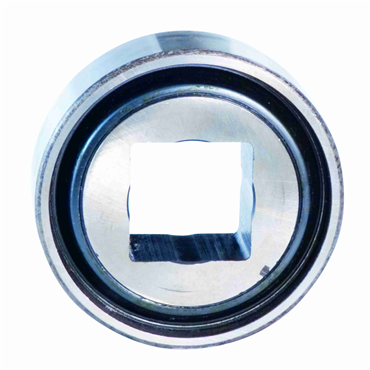

- 18SB52E08E3 Unmounted Replacement Bearings Ball Bearings
features
- 1 1/8" Unmounted
- Non Relubricatable
- Cylindrical OD
- Square Ball Bearing
- Triple Lip Contact Seal
| Bore Length | 1 7/16 in |
| Outer Ring Width | 0.709 in |
| I.D. | 1.185 in |
| Lubrication Type | EXXON RONEX MP STD |
| Speed [Max] | 650 rpm |
| Vibration Frequency Roller Spin | 0.037 cps |
| Static Load Rating | 4460 lb |
| Internal Clearance | C3 Standard |
| Inner Ring Hub Diameter | 2.083 in |
| Temperature [Max] | 225 °F |
| No. of lips | Triple |
| Vibration Frequency Outer Ring Defect | 0.059 cps |
| Assembly Type | Style 1 |
| Duty Type | Standard |
| O.D. | 3.15 in |
| Shaft Locking | Direct Shaft Mount |
| Vibration Frequency Inner Ring Defect | 0.091 cps |
| Vibration Frequency Fundamental Train | 0.007 cps |
| Seal Type | E3 Triple Lip Seal |
| Available Seal Type | E3 Triple Lip Seal, N Lip Seal |
| Dynamic Load Rating | 7330 lb |
| Retainer Type | Nylon |
| Primary Seal | Buna Triple Lip Seal |
| Weight | 1.68 LB |
| EAN or UPC | 662327185572 |
