F3S210EK75

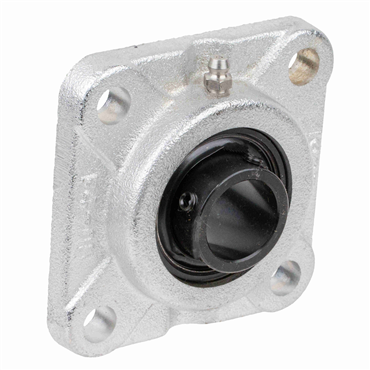

5/8 in Cast Iron Setscrew Locking Intermediate Duty 4 Bolt Flange Block

Item #106001332

Auto Replenish

each One-time purchase

Product Details

Specifications

Mounting Housing Width	3/8 in
Lubrication Type	MOBIL FM222 FOOD GRADE H1
Mounted Unit Duty	Intermediate Duty
Vibration Frequency Roller Spin	0.029 cps
Bearing Design	Non-Expansion
Distance Between Bolt Holes	2 1/8 in
Available Seal Type	E Lip Seal, E1 Viton Seal, FF Free Running, HFF Free Running, MHFF Free Running
Dynamic Load Rating	2360 lb
Primary Seal	Buna Single Lip Contact Seal
Setscrew Torque	33-40 in/lbs
Shaft Locking	Setscrew
Flange Type	4-Bolt Flange
Shape	Square
Housing Coating	Nickel Plated
Housing Material	Cast Iron
Shaft Dia.	0.625 in
No. of Bolts	4
Series	200
Mounting Pad Width	3 in
Set Screw Torque	33-40 in/lbs
Bearing Coating Material	Black Oxide
Locking Device	Setscrew Locking
Bearing Type	Ball Bearing
Speed [Max]	9000 rpm
Mounting Bolt Size	3/8 in
Housing Overall Circle Diameter	3 7/8 in
Standoff Distance	9/64 in
Grease Fitting Size	1/4-28
Fixed Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.074 cps
Bore Range [Min]	0.5 in
Vibration Frequency Fundamental Train	0.006 cps
Static Load Rating	1110 lb
Retainer Type	Nylon
Bore Length	63/64 in
Temperature [Max]	225 °F
Internal Clearance	C3 Standard
No. of lips	Single
Duty Type	Intermediate
Bore Range [Max]	2.9375 in
Finish	Nickel Plated
Seal Type	Single Lip Contact Seal
Inch/Metric	Inch
Vibration Frequency Outer Ring Defect	0.043 cps
Weight	0.96 LB
EAN or UPC	662864724135
