KFXS212DBLKK6

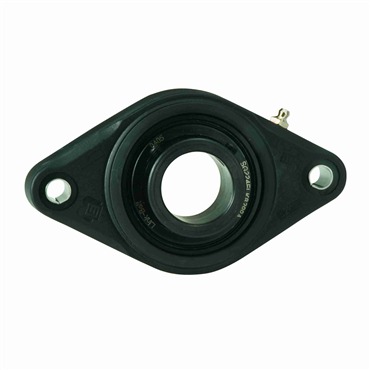

3/4 in Setscrew Locking Intermediate Duty 2 Bolt Flange Block

Item #105132048

Auto Replenish

each One-time purchase

Product Details

Specifications

Housing Material	Polyamide
Vibration Frequency Fundamental Train	0.006 cps
Vibration Frequency Inner Ring Defect	0.083 cps
Bearing Design	Non-Expansion
Series	200
Mounting Bolt Size	3/8 in
Vibration Frequency Roller Spin	0.033 cps
Temperature [Max]	194 °F
Mounted Unit Duty	Intermediate Duty
Setscrew Torque	87-92 in/lbs
Mounting Housing Width	51/64 in
Shaft Locking	Setscrew
Lubrication Type	MOBIL FM222 FOOD GRADE H1
Bearing Type	Ball Bearing
Housing Length	4 9/16 in
Bore Length	1 1/8 in
Fixed Expansion	Fixed
Set Screw Torque	87-92 in/lbs
Speed [Max]	7500 rpm
Locking Device	Setscrew Locking
Retainer Type	Nylon
Available Seal Type	E Lip Seal, E1 Viton Seal, FF Free Running, HFF Free Running, MHFF Free Running
Flange Type	2-Bolt Flange
Bore Range [Min]	0.75 in
Duty Type	Intermediate
Shaft Dia.	0.75 in
Grease Fitting Size	RP 1/8 PAR
Auxiliary Seals	Blk O Cp Dbl Lip Bn Sft R Aux
Distance Between Bolt Holes	3.54 in
End Type	Open End
Bearing Coating Material	Black Oxide
Dynamic Load Rating	2870 lb
Bore Range [Max]	1.5 in
Internal Clearance	C3 Standard
Vibration Frequency Outer Ring Defect	0.051 cps
Static Load Rating	1480 lb
Special Lube Percent	100% Grease Fill
Inch/Metric	Inch
Seal Type	Single Lip Contact Seal
Special Lube Fitting	Housing Plugged
No. of lips	Single
No. of Bolts	2
Weight	0.875 LB
EAN or UPC	793699399585
