PLB6887FR

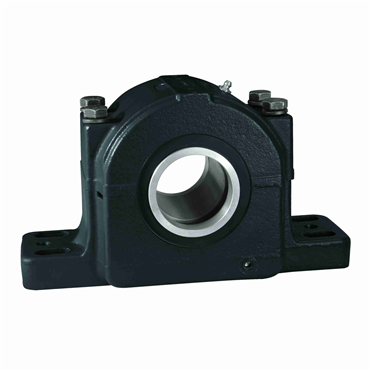

5 7/16 in Cast Iron 4 Bolt Pillow Block

Item #100739050

Auto Replenish

each One-time purchase

Product Details

Specifications

Housing Height	13 3/8 in
Speed Using Oil [Max]	1700 rpm
Dynamic Load Rating	216000 lb
Size Code	22232
Shaft Locking	Tapered Adapter Mount
Bearing Design	Non-Expansion
Mounting Pad Height	2 5/8 in
Grease Fitting Size	1/4 NPT
Fixed Expansion	Fixed-Expansion
Vibration Frequency Fundamental Train	0.007 cps
Base Length	22 in
Mounting Pad Length	22 in
Temperature Range [Max]	225 °F
Mounting Bolt Size	1 in
Mounted Unit Duty	Heavy-Duty
Bearing Type	Spherical Roller Bearing
Bolt Holes	4
Base Width	6 1/4 in
Bolt Hole Spacing Range [Min]	17 3/8 in
Housing Construction	2 Piece
Bolt Hole Spacing - Width	3 3/4 in
Retainer Type	Steel
Internal Clearance	C3 Standard
Bolt Hole Spacing Range [Max]	19 1/4 in
Base to Centerline Height	6 11/16 in
Center Line to Base Dimension [Min]	6 11/16 in
Shaft Dia.	5.4375 in
Bearing Insert	22232LBK
Vibration Frequency Outer Ring Defect	0.127 cps
Housing Width	8 1/2 in
Inch/Metric	Inch Bore
Housing Material	Cast Iron
Seal Type	R Labyrinth LER Seals
Pillow Block Type	Thru-Bolt
Speed Using Grease [Max]	1500 rpm
Temperature [Max]	225 °F
Static Load Rating	310000 lb
Bolt Size	1 in
Cap Bolt Torque	400-440 ft-lbs
End Type	Open End
Vibration Frequency Inner Ring Defect	0.173 cps
Vibration Frequency Roller Spin	0.052 cps
Series	6800
Locking Device	Adapter Mounted
Mounting Pad Width	6 1/4 in
Base Height	2 5/8 in
Lubrication	Relubricatable
Overall Width	8 1/2 in
Coating	Powder Coated
Bolt Hole Spacing	3 3/4 in
No. of Bolts	4
Primary Seal	Ler Triple Ring Seal
Weight	250.0 LB
EAN or UPC	662327118181
